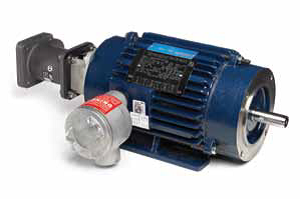

Marathon Electric Y982, 7 1/2 Hp, 1800 Rpm, 254TC FR, 230/460 V, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 254THEN8058.

Y982, 7 1/2 Hp, 1800 Rpm, 254TC FR, 230/460 V, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 254THEN8058.

Engineering Data

Output HP:7.50 Hp
Output KW:5.6 kW
Frequency:60 Hz
Voltage:230/460 V
Current:22.0/11.0 A
Speed:1782 rpm
Service Factor:1
Phase:3
Efficiency:91.7 %
Power Factor:69
Duty:Continuous
Insulation Class:F
Design Code:INV
KVA Code:M
Frame:254TC
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6309
Opp Drive End Bearing Size:6309
UL:Listed
CSA:Y
CE:NIP Code:54
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:.76 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:30.20 in
Frame Length:10.50 in
Shaft Diameter:1.625 in
Shaft Extension:3.75 in
Assembly/Box Mounting:F1/F2 CAPABLE
