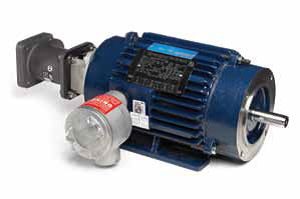

Marathon Electric Y985, 20 Hp, 1800 Rpm, 284TC FR, 230/460 V, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 284THEN8032.

Y985, 20 Hp, 1800 Rpm, 284TC FR, 230/460 V, TENV, C-Face Footed, Tstat Overload, Inverter Duty, Blue Max 2000, Explosion Proof w/Encoder, 284THEN8032.

Engineering Data

Output HP:20 Hp
Output KW:14.9 kW
Frequency:60 Hz
Voltage:230/460 V
Current:53.0/26.5 A
Speed:1775 rpm
Service Factor:1
Phase:3
Efficiency:93.6 %
Power Factor:76
Duty:Continuous
Insulation Class:F
Design Code:INV
KVA Code:M
Frame:284TC
Enclosure:Explosion Proof Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6311
Opp Drive End Bearing Size:6311
UL:Listed
CSA:Y
CE:NIP Code:54
Technical Specifications
Electrical Type:Squirrel Cage Inverter Duty
Starting Method:Inverter Only
Poles:4
Rotation:Reversible
Resistance Main:.2 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Cast Iron
Shaft Type:T
Overall Length:33.16 in
Frame Length:12.75 in
Shaft Diameter:1.875 in
Shaft Extension:4.38 in
Assembly/Box Mounting:F1 ONLY
