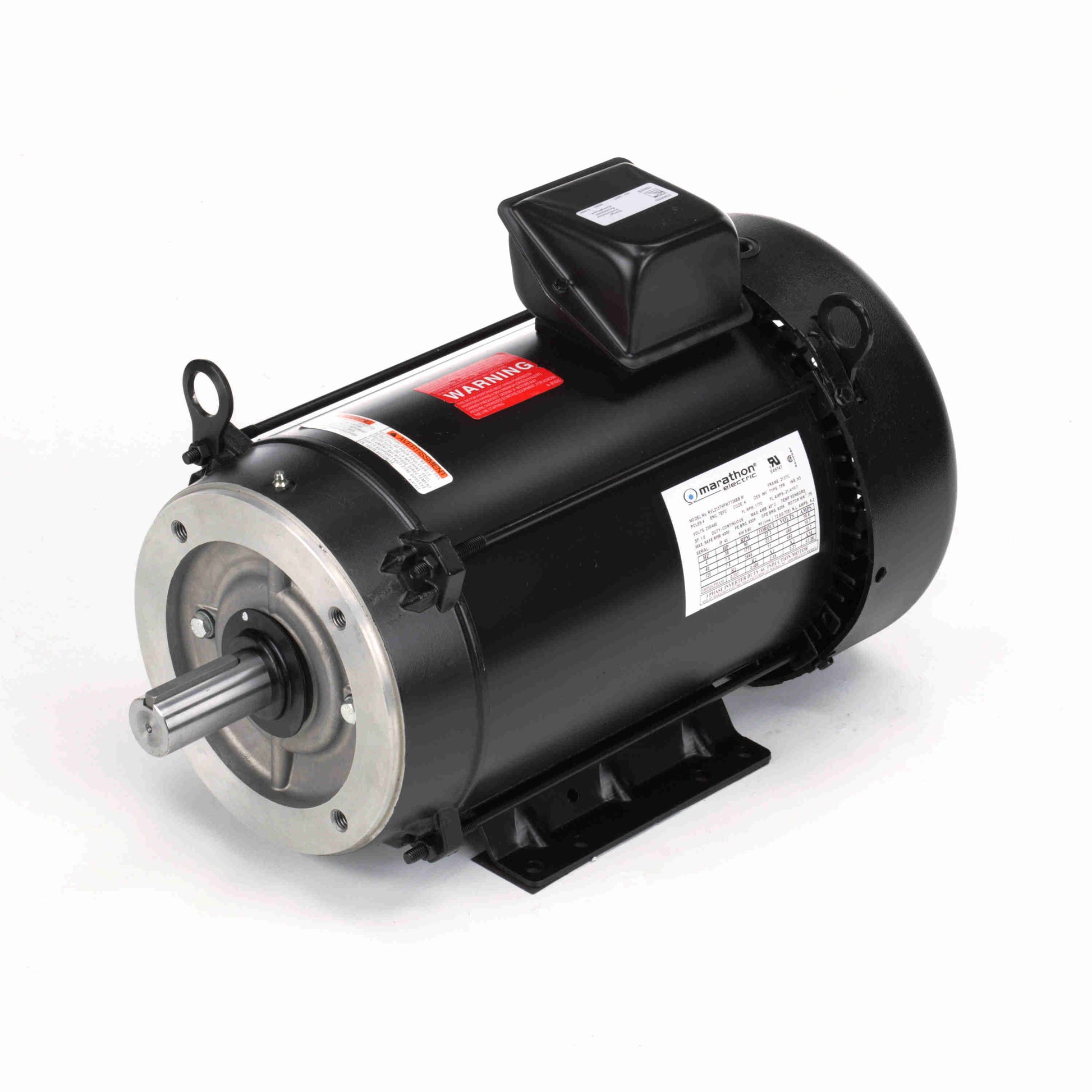

Marathon Electric Y995, 7 1/2 Hp, 1800 Rpm, 213TC FR, 575 Vac, 3 PH, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 213THFW7736

Y995, 7 1/2 Hp, 1800 Rpm, 213TC FR, 575 Vac, 3 PH, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 213THFW7736

Engineering Data

Output HP : 7.50 Hp
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 8.6 A
Speed : 1770 rpm
Service Factor : 1
Phase : 3
Efficiency : 89.5 %
Duty : Continuous
Insulation Class : H
Design Code : INV
KVA Code : K
Frame : 213TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 309
Opp Drive End Bearing Size : 206
UL : Recognized
CSA : Y
CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty
Starting Method : Inverter Only
Poles : 4
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 20.97 in
Frame Length : 11.15 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F3
UPC : 722856024664
Weight : 128.00 LB
