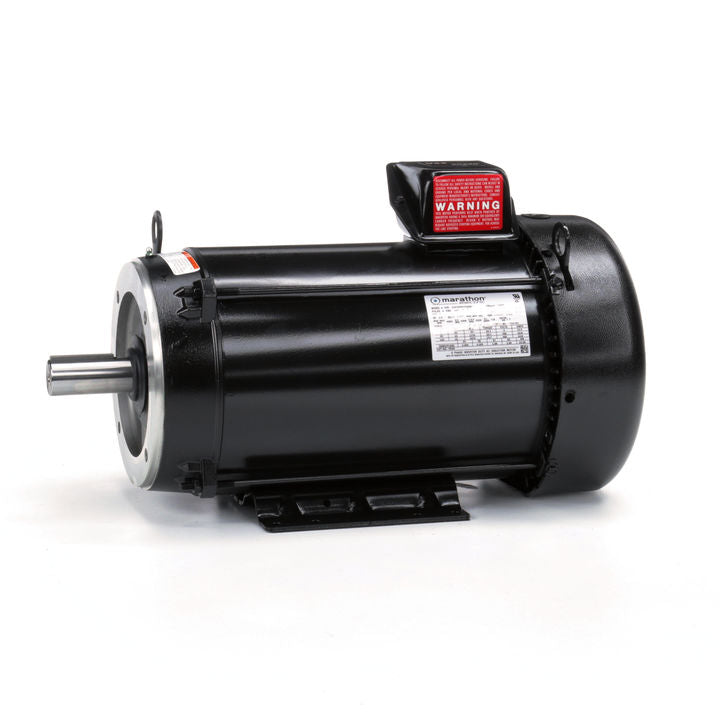

Marathon Electric Y996, 10 Hp, 1800 Rpm, 215TC FR, 230/460 Vac, Totally Enclosed, C-Face Footed, Inverter Duty, microMAX, 215THFW7726.

Y996, 10 Hp, 1800 Rpm, 215TC FR, 230/460 Vac, Totally Enclosed, C-Face Footed, Inverter Duty, microMAX, 215THFW7726.

Engineering Data

Output HP : 10 HP
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 27.6/13.8 A
Speed : 1770 RPM
Service Factor : 1
Phase : 3
Efficiency : 91 %
Duty : Continous
Insulation Class : H
Design Code : INV
KVA Code : K
Frame : 215TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y CE : Y IP Code : 43
Technical Specifications
Electrical Type : Squirrel Cage Inverter Duty
Starting Method : Inverter Only
Poles : 4
Rotation : Reversible
Mounting : Bolt-on Base
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 22.22 in
Frame Length : 12.40 in
Shaft Diameter : 1.375 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F3
