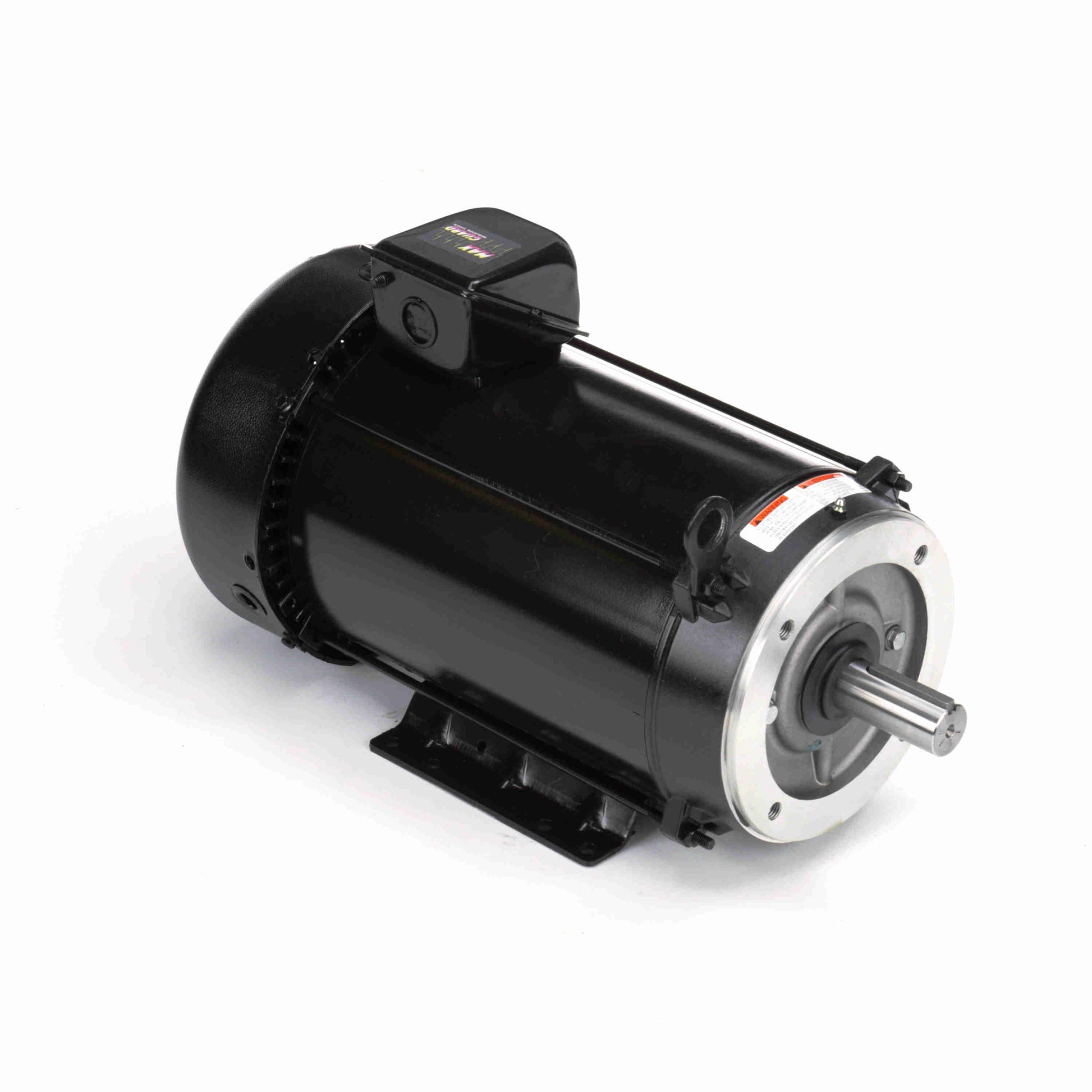

Marathon Electric Y997, 10 Hp, 1800 Rpm, 215TC FR, 575 Vac, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 215THFW7736.

Y997, 10 Hp, 1800 Rpm, 215TC FR, 575 Vac, Totally Enclosed, C-Face Footed, Inverter Duty, MicroMAX, 215THFW7736.

Engineering Data

Nameplate Specifications
Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 575 V
Current : 11.1 A
Speed : 1770 rpm
Service Factor : 1
Phase : 3
Efficiency : 91 %
Duty : Continuous
Insulation Class : H
Design Code : INV
KVA Code : K
Frame : 215TC
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6206
UL : Recognized
CSA : Y
CE : Y IP
Code : 43
