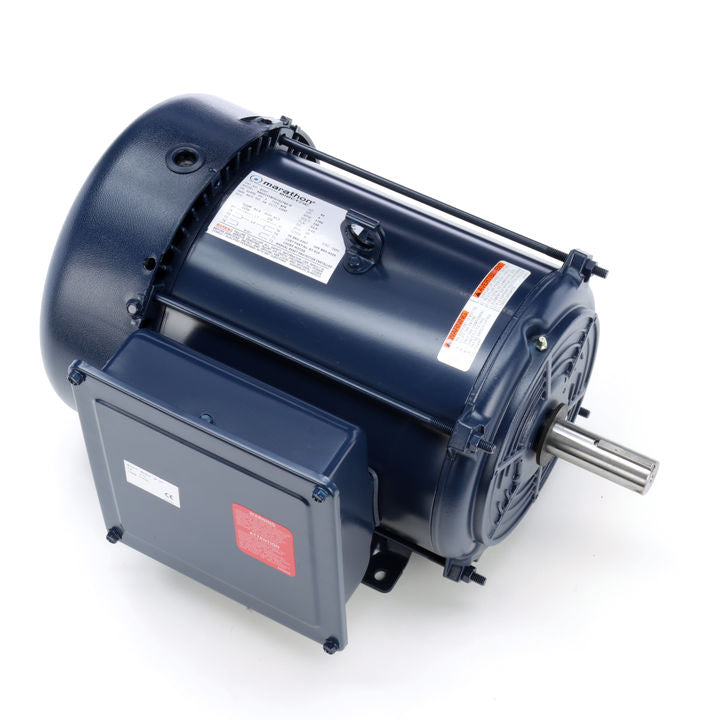

Marathon Electric Z117, 5 Hp, 1800 Rpm, 213TZ FR, 230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ Extra-High Torque Chore Motor, 213TBFW7027.

Z117, 5 Hp, 1800 Rpm, 213TZ FR, 230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ Extra-High Torque Chore Motor, 213TBFW7027.

Engineering Data

Output HP :5 HP
Output KW :3.7 kW
Frequency :60 Hz
Voltage :230 V
Current :22.6 A
Speed :1740 RPM
Service Factor :1.15
Phase :1
Efficiency :82.5 %
Duty :Continous
Insulation Class :F
Design Code :NO DESIGN CODE
KVA Code :K
Frame :213TZ
Enclosure :Totally Enclosed Fan Cooled
Overload Protector :Manual
Ambient Temperature :40 °C
Drive End Bearing Size :6307
Opp Drive End Bearing Size :6206
UL :Recognized ( Not Protector)
CSA :Y
CE :YIP Code :43
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run
Starting Method :Across The Line
Poles :4
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :Single Special Extension
Overall Length :18.34 in
Frame Length :9.65 in
Shaft Diameter :1.125 in
Shaft Extension :3.47 in
Assembly/Box Mounting :F1 Only
UPC :722856261175
