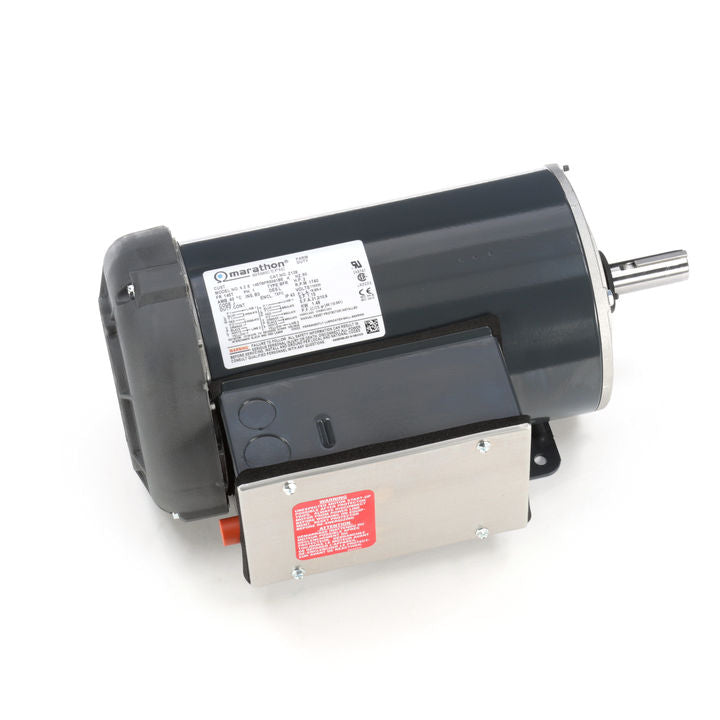

Marathon Electric Z128, 2 Hp, 1800 Rpm, 145T FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor, 145TBFR5341.

Z128, 2 Hp, 1800 Rpm, 145T FR, 115/230 Vac, 1 PH, TEFC, Rigid Base, Farm Duty/ High Torque Motor, 145TBFR5341.

Engineering Data

Output HP:2 Hp
Output KW:1.5 kW
Frequency:60 Hz
Voltage:115/230 V
Current:18.8/9.4 A
Speed:1740 rpm
Service Factor:1.15
Phase:1
Efficiency:81.5 %
Power Factor:86.1
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:J
Frame:145T
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6205
Opp Drive End Bearing Size:6203
UL:Recognized ( Not Protector
)CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:14.87 in
Frame Length:9.56 in
Shaft Diameter:0.875 in
Shaft Extension:2.25 in
Assembly/Box Mounting:F1 Only
