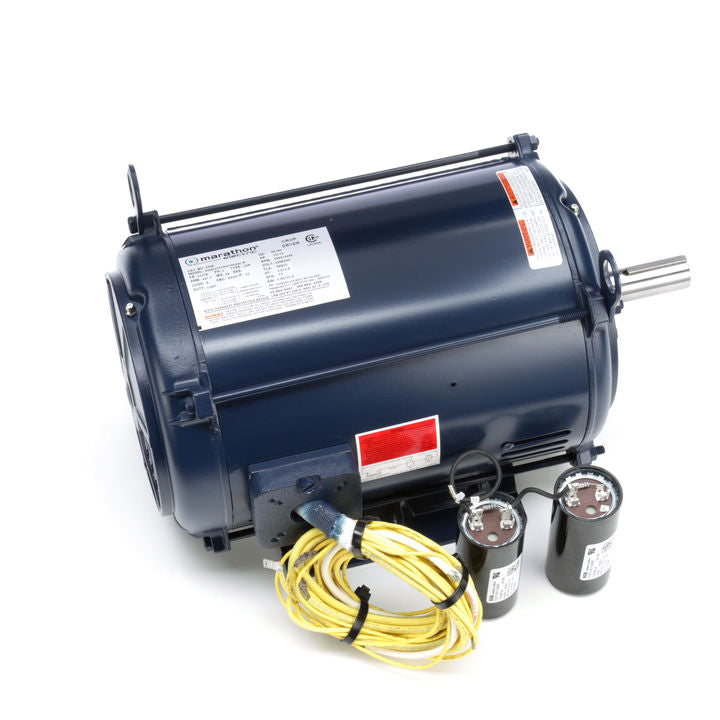

Marathon Electric Z308, 10-15 Hp, 3600 Rpm, 215TZ FR, 230 Vac, 1 PH, Dripproof/Air Over, Rigid Base, Crop Dryer, Tstat Overload.High Speed, 215TCDW7003.

Z308, 10-15 Hp, 3600 Rpm, 215TZ FR, 230 Vac, 1 PH, Dripproof/Air Over, Rigid Base, Crop Dryer, Tstat Overload.High Speed, 215TCDW7003.

Engineering Data

Output HP :10 HP
Output KW :7.5 kW
Frequency :60 Hz
Voltage :230 V
Current :46.0 A
Speed :3495 RPM
Service Factor :1.5
Phase :1
Efficiency :82.5 %
Duty :Continuous
Insulation Class :F
Design Code :NO DESIGN CODE
KVA Code :G
Frame :215TZ
Enclosure :Drip Proof Air Over
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6307
Opp Drive End Bearing Size :6206
UL :Recognized
CSA :Y
CE :NIP Code :22
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :2
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :Single Special Extension
Overall Length :18.16 in
Frame Length :11.15 in
Shaft Diameter :1.125 in
Shaft Extension :3.59 in
