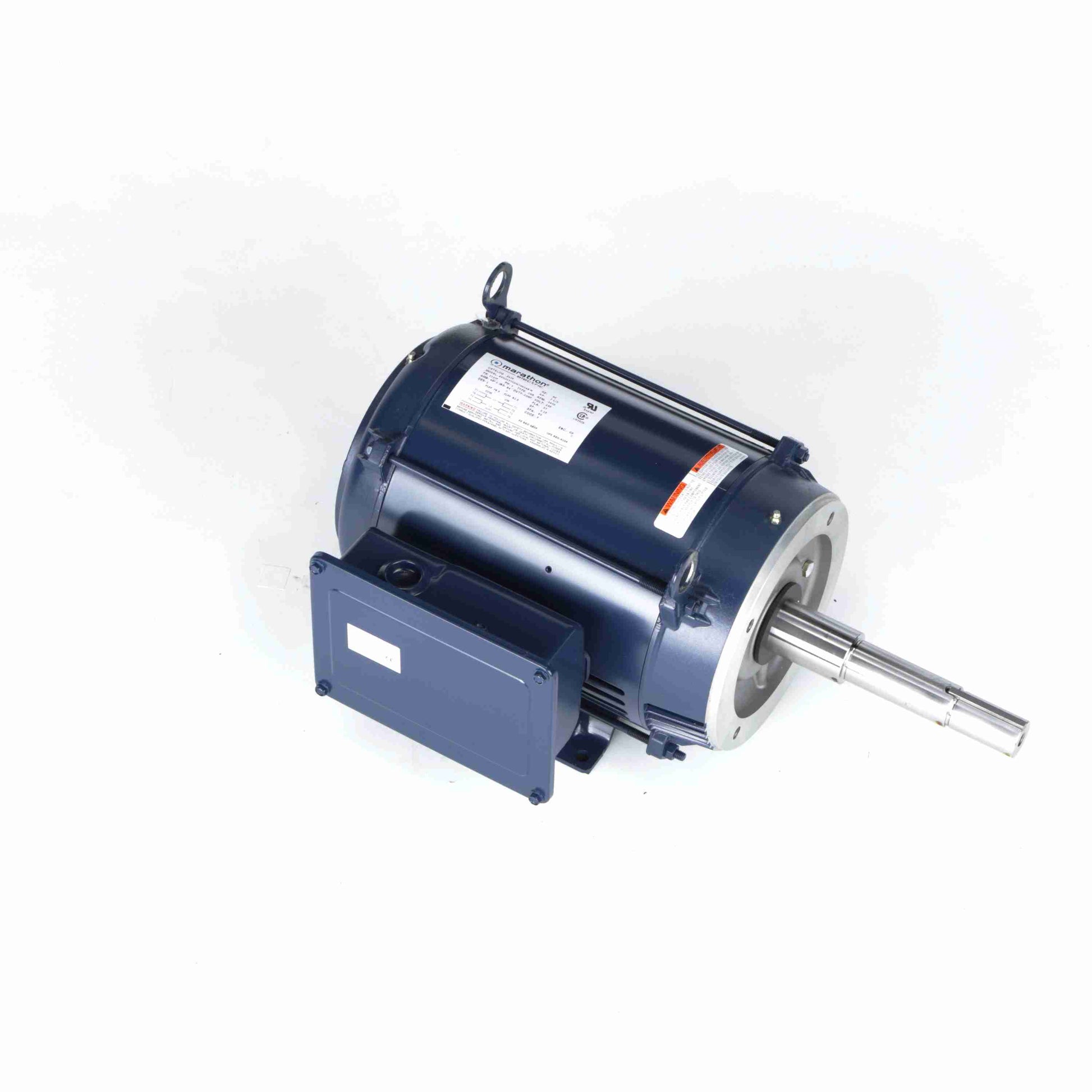

Marathon Electric Z420, 1 Hp, 1800 Rpm, 143JP FR, 115/208-230 Vac, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 143TCDR5330.

Z420, 1 Hp, 1800 Rpm, 143JP FR, 115/208-230 Vac, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 143TCDR5330.

Engineering Data

Output HP :1 HP
Output KW :0.75 kW
Frequency :60 Hz
Voltage :115/208-230 V
Current :13.4/6.8-6.7 A
Speed :1725 RPM
Service Factor :1.15
Phase :1
Efficiency :72 %Duty :Continuous
Insulation Class :B
Design Code :L
KVA Code :J
Frame :143JP
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6206
Opp Drive End Bearing Size :620
3UL :Recognized
CSA :Y
CE :YIP Code :22
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :4
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :JP
Overall Length :16.68 in
Frame Length :7.56 in
Shaft Diameter :0.875 in
Shaft Extension :7.31 in
Assembly/Box Mounting :F1 Only
UPC :722856034465
