Industrial Motors

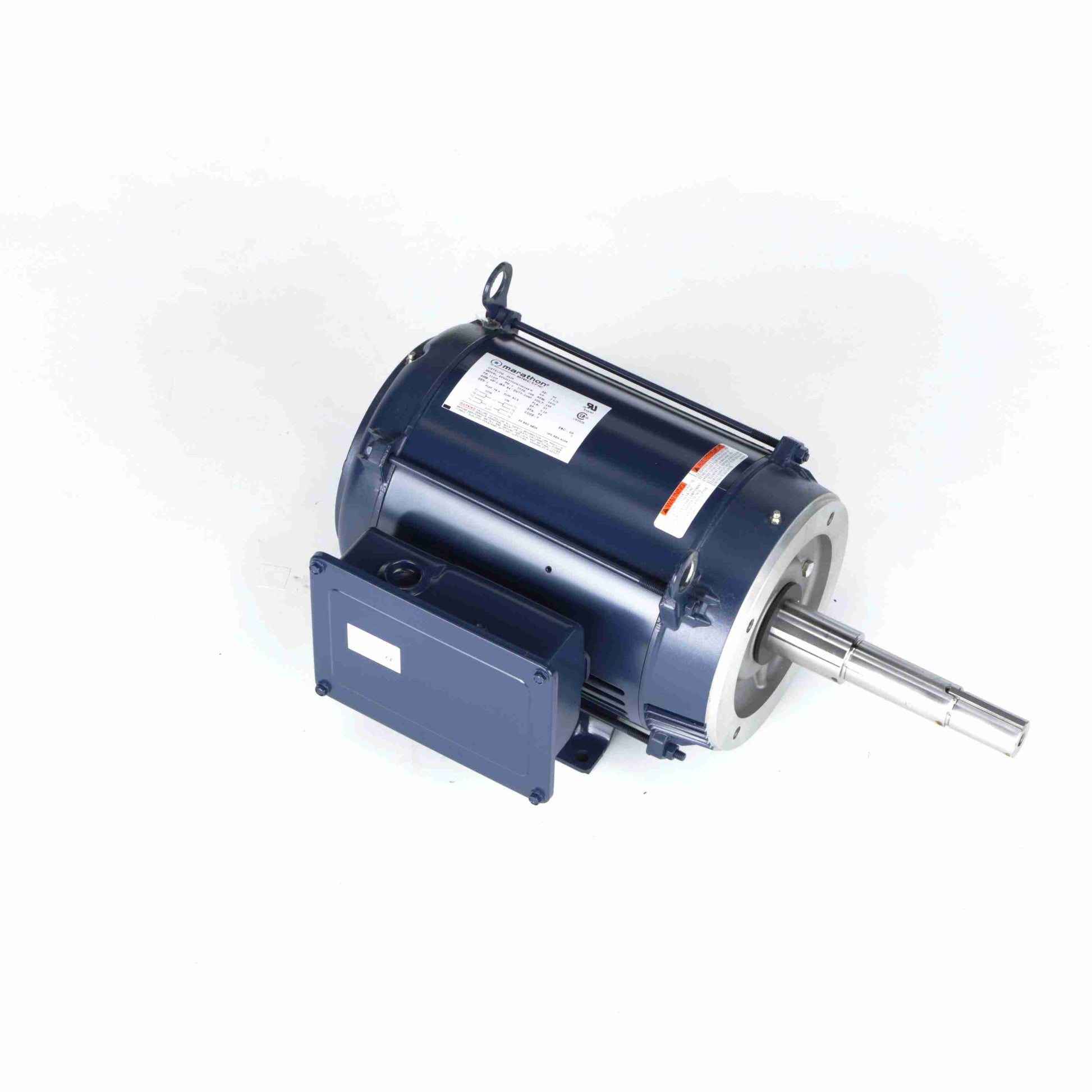

Marathon Electric Z425, 3 Hp, 3600 Rpm, 182JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 182TCDR8005

Marathon Electric Z425, 3 Hp, 3600 Rpm, 182JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 182TCDR8005

$714.31
$714.31
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$714.31 $678.60
Sale

Z425, 3 Hp, 3600 Rpm, 182JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 182TCDR8005

Engineering Data

60 Hertz
HP 3 Voltage 115/230
kW 2.24 FL Amps 32/16
RPM 3600
FL Eff 74 % SF 1.15

Phase 1 Insulation Class B
Frame 182JP Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design L
Orientation HORIZONTAL Starting Type CAP START IND RUN
Assembly F1 ONLY KVA Code G
Drive End Bearing BALL IP Code 23
Opposite End Bearing BALL
Drive End Bearing Size 6307 Rotation SELECTIVE CCW
Opposite End Bearing Size 6205
Weight 87 LB lbs
CE Y CSA Y
UL Recognized Construction
Thermal Protection
