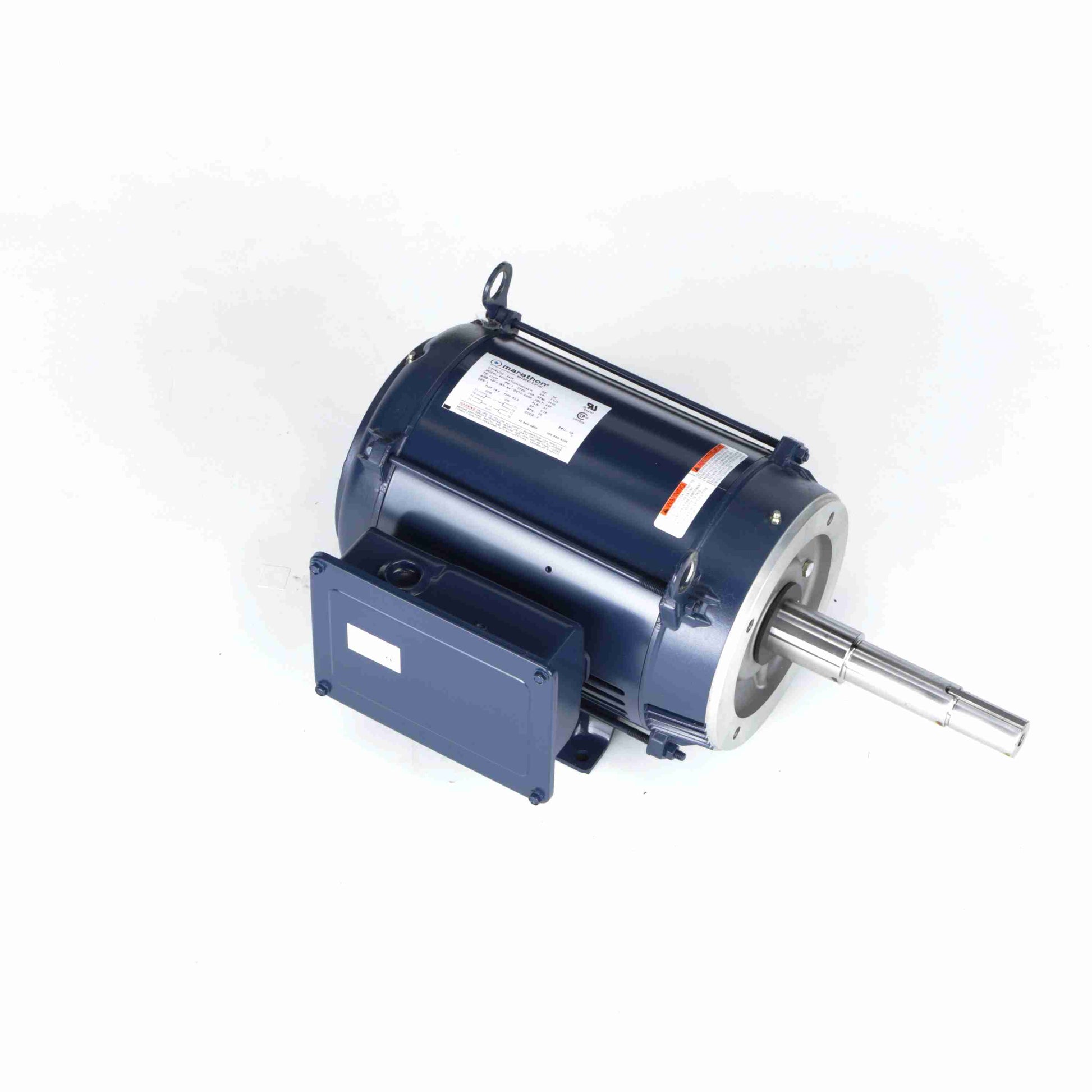

Marathon Electric Z426, 3 Hp, 1800 Rpm, 184JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 184TCDR7626

Z426, 3 Hp, 1800 Rpm, 184JP FR, 115/230 Vac, 1 PH, ODP, C-Face with Base, Close-Coupled Pump, 184TCDR7626

Engineering Data

Output HP:3 Hp
Output KW:2.2 kW
Frequency:60 Hz
Voltage:115/230 V
Current:33.0/16.5 A
Speed:1758 rpm
Service Factor:1.15
Phase:1
Efficiency:77.4 %
Power Factor:76.2
Duty:Continuous
Insulation Class:B
Design Code:L
KVA Code:J
Frame:184JP
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6307
Opp Drive End Bearing Size:6205
UL:Recognized
CSA:Y
CE:YIP Code:22
Technical Specifications
Electrical Type:Capacitor Start Induction Run
Starting Method:Across The Line
Poles:4
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:JP
Overall Length:20.65 in
Frame Length:8.25 in
Shaft Diameter:0.875 in
Shaft Extension:7.34 in
Assembly/Box Mounting:F1 Only
