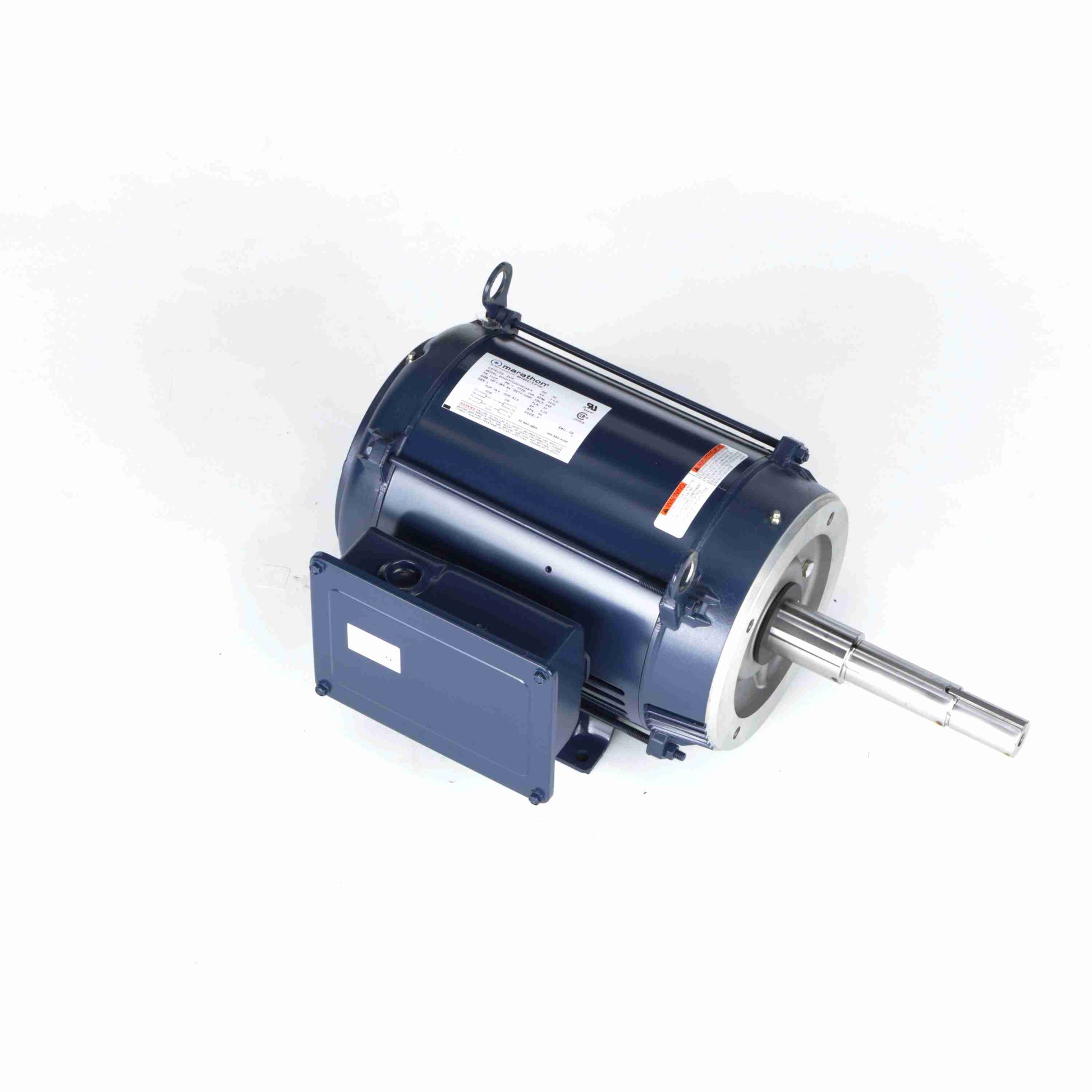

Marathon Electric Z427A, 5 Hp, 3600 Rpm, 230 Vac, 184JP FR, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JP, 184TBDW17011.

Z427A, 5 Hp, 3600 Rpm, 230 Vac, 184JP FR, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JP, 184TBDW17011.

Engineering Data

Output HP :5 HP
Output KW :3.7 kW
Frequency :60 Hz
Voltage :230 V
Current :22.0 A
Speed :3500 RPM
Service Factor :1.15
Phase :1
Efficiency :80 %Duty :Continuous
Insulation Class :F
Design Code :L
KVA Code :H
Frame :184JP
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6207
Opp Drive End Bearing Size :6205
UL :Recognized
CSA :Y
CE :YIP
Code :22
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run
Starting Method :Across The Line
Poles :2
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :JP
Overall Length :19.46 in
Frame Length :10.50 in
Shaft Diameter :0.875 in
Shaft Extension :7.31 in
Assembly/Box Mounting :F1 Only
UPC :722856034519
