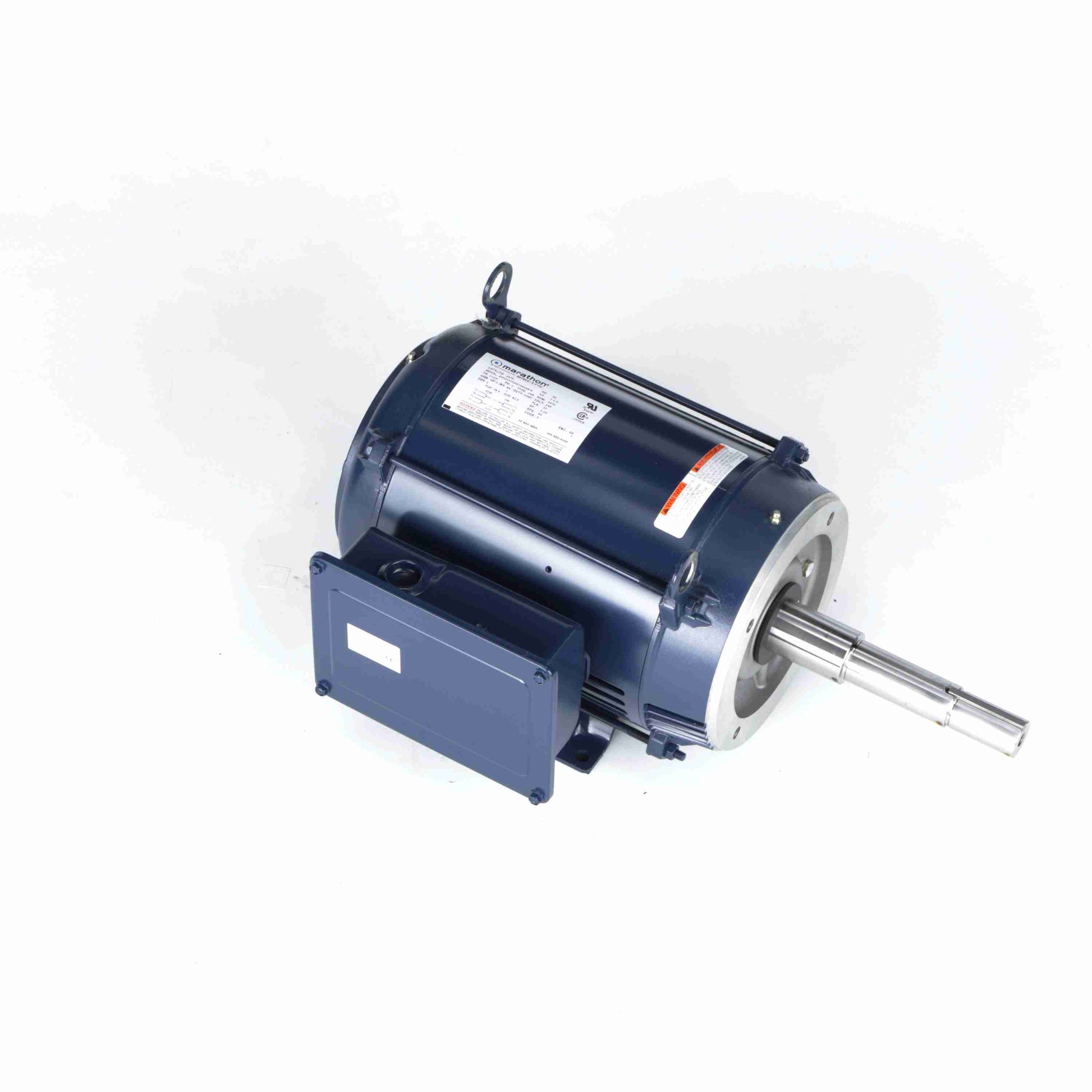

Marathon Electric Z428, 5 Hp, 1800 Rpm, 213JP FR, 230 V,1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 213TCDW7028.

Z428, 5 Hp, 1800 Rpm, 213JP FR, 230 V,1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 213TCDW7028.

Engineering Data

Output HP :5 HP
Output KW :3.7 kW
Frequency :60 Hz
Voltage :230 V
Current :28.0 A
Speed :1730 RPM
Service Factor :1.15
Phase :1
Efficiency :78.5 %
Duty :Continuous
Insulation Class :B
Design Code :L
KVA Code :H
Frame :213JP
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206
UL :Recognized
CSA :Y
CE :YIP Code :22
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :4
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :JP
Overall Length :23.79 in
Frame Length :11.15 in
Shaft Diameter :1.25 in
Shaft Extension :8.12 in
Assembly/Box Mounting :F1/F2 Capable
UPC :722856034526
