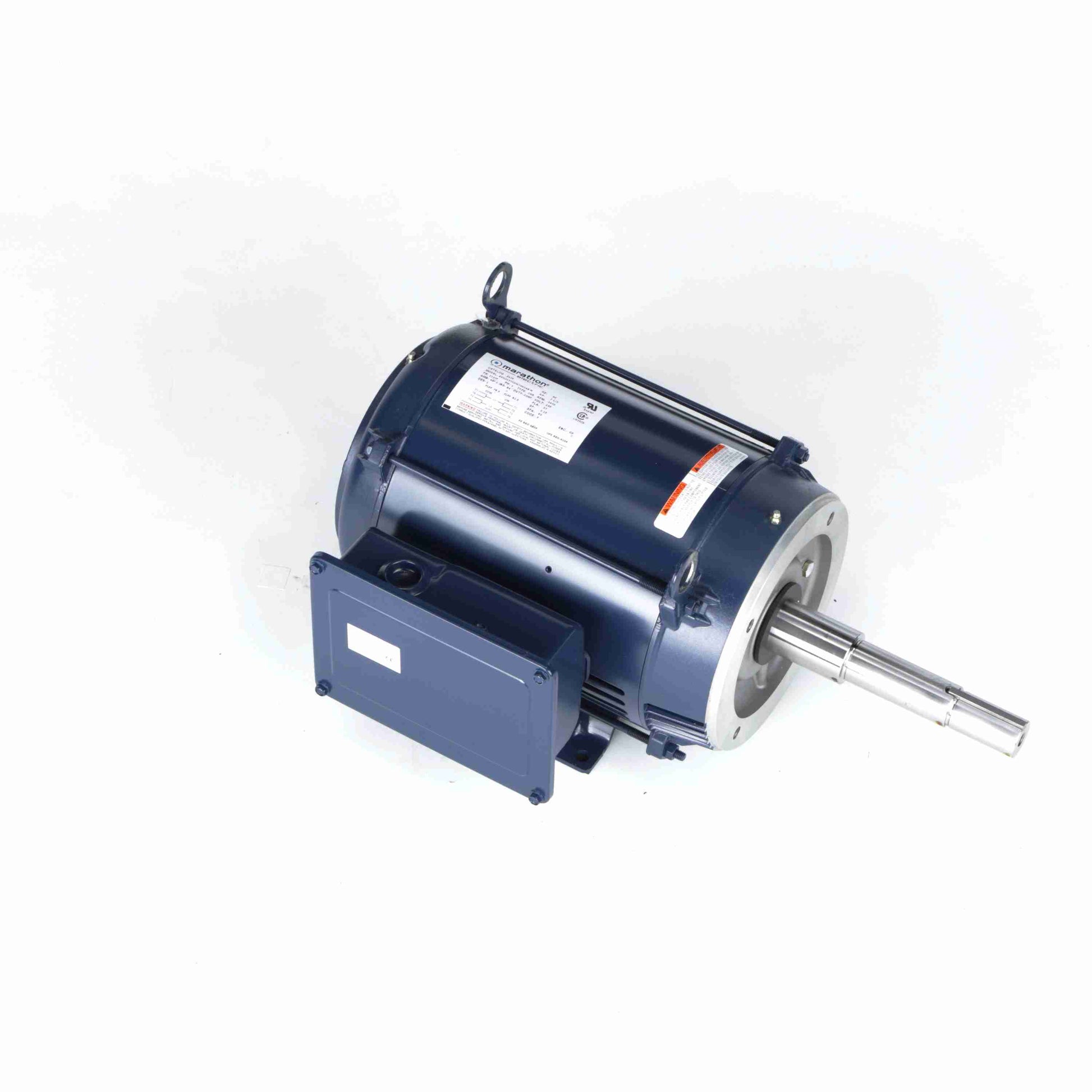

Marathon Electric Z429, 7 1/2 Hp, 3600 Rpm, 213JP FR, 230 V, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 213TCDW7003.

Z429, 7 1/2 Hp, 3600 Rpm, 213JP FR, 230 V, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 213TCDW7003.

Engineering Data

Output HP :7.50 HP
Output KW :5.6 kW
Frequency :60 Hz
Voltage :230 V
Current :37.0 A
Speed :3470 RPM
Service Factor :1.15
Phase :1
Efficiency :78.5 %Duty :Continuous
Insulation Class :B
Design Code :L
KVA Code :F
Frame :213JP
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206
UL :Recognized
CSA :Y
CE :YIP Code :22
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :2
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :BalOpp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :JP
Overall Length :22.29 in
Frame Length :9.65 in
Shaft Diameter :1.25 in
Shaft Extension :8.12 in
Assembly/Box Mounting :F1 Only
UPC :722856034533
