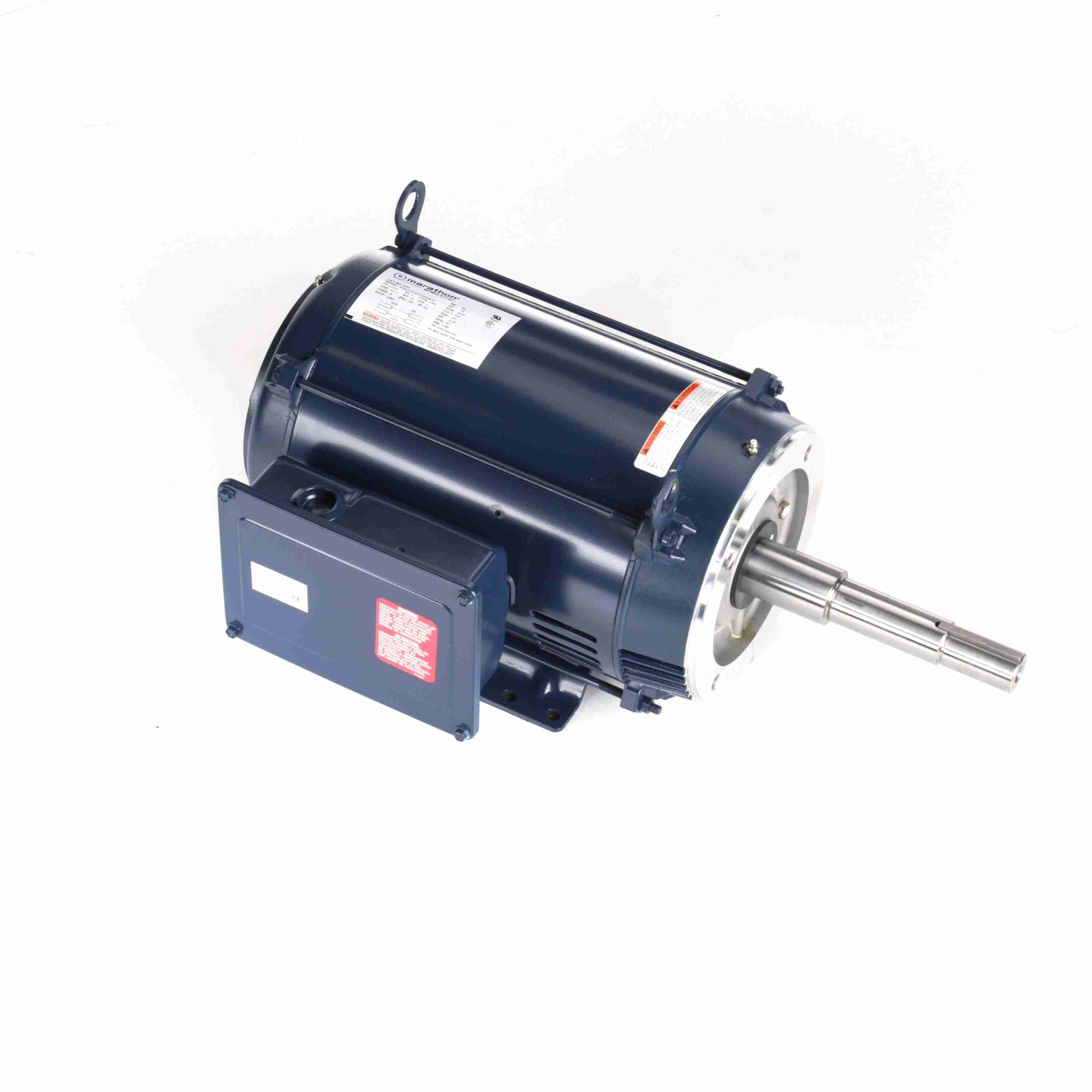

Marathon Electric Z430, 7 1/2 Hp, 1800 Rpm, 215JP FR, 230 Vac, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 215TBDW7045..

Z430, 7 1/2 Hp, 1800 Rpm, 215JP FR, 230 Vac, 1 PH, Dripproof, C-face Footed, Close-Coupled Pump, JM, 215TBDW7045..

Engineering Data

Output HP :7.50 HP
Output KW :5.6 kW
Frequency :60 Hz
Voltage :230 V
Current :34.5 A
Speed :1735 RPM
Service Factor :1.15
Phase :1
Efficiency :84 %
Duty :Continuous
Insulation Class :F
Design Code :L
KVA Code :G
Frame :215JP
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206
UL :Recognized
CSA :Y
CE :YIP Code :23
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run
Starting Method :Across The Line
Poles :4
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :JP
Overall Length :23.79 in
Frame Length :11.15 in
Shaft Diameter :1.25 in
Shaft Extension :8.12 in
Assembly/Box Mounting :F1 ONLY
UPC :722856034540
