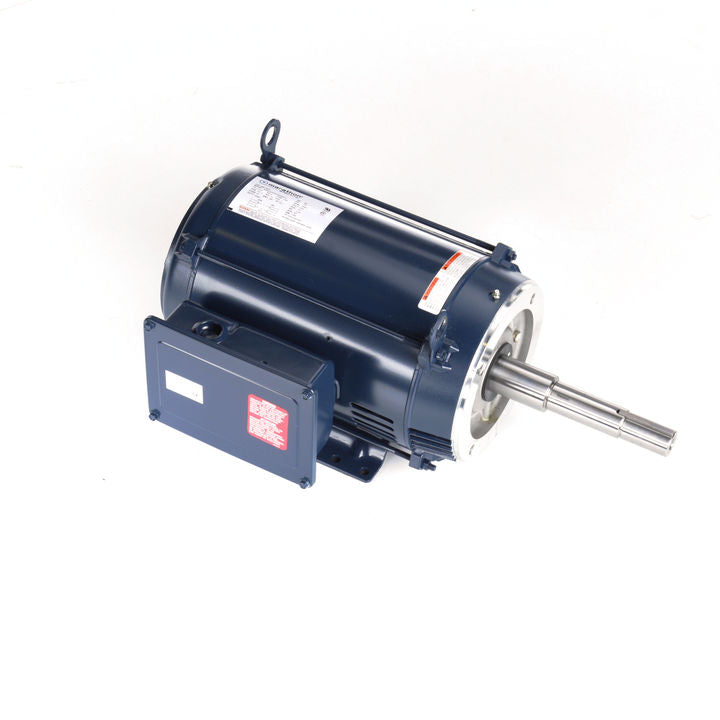

Marathon Electric Z431,10 Hp, 3600 Rpm, 215JP FR, 230 Vac, 1 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM, 215TCDW7004

Z431,10 Hp, 3600 Rpm, 215JP FR, 230 Vac, 1 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM, 215TCDW7004.

Engineering Data

Output HP :10 HP
Output KW :7.5 kW
Frequency :60 Hz
Voltage :230 V
Current :47.0 A
Speed :3465 RPM
Service Factor :1.15
Phase :1
Efficiency :81.5 %
Duty :Continuous
Insulation Class :F
Design Code :L
KVA Code :G
Frame :215JP
Enclosure :Drip Proof
Overload Protector :No
Ambient Temperature :40 °C
Drive End Bearing Size :6309
Opp Drive End Bearing Size :6206
UL :Recognized
CSA :Y
CE :YIP Code :22
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :Across The Line
Poles :2
Rotation :Selective Counterclockwise
Mounting :Rigid Base
Motor Orientation :Horizontal
Drive End Bearing :Ball
Opp Drive End Bearing :Ball
Frame Material :Rolled Steel
Shaft Type :JP
Overall Length :23.81 in
Shaft Diameter :1.25 in
Shaft Extension :8.15 in
Assembly/Box Mounting :F1 Only
UPC :722856034557
Weight :156.00 LB
