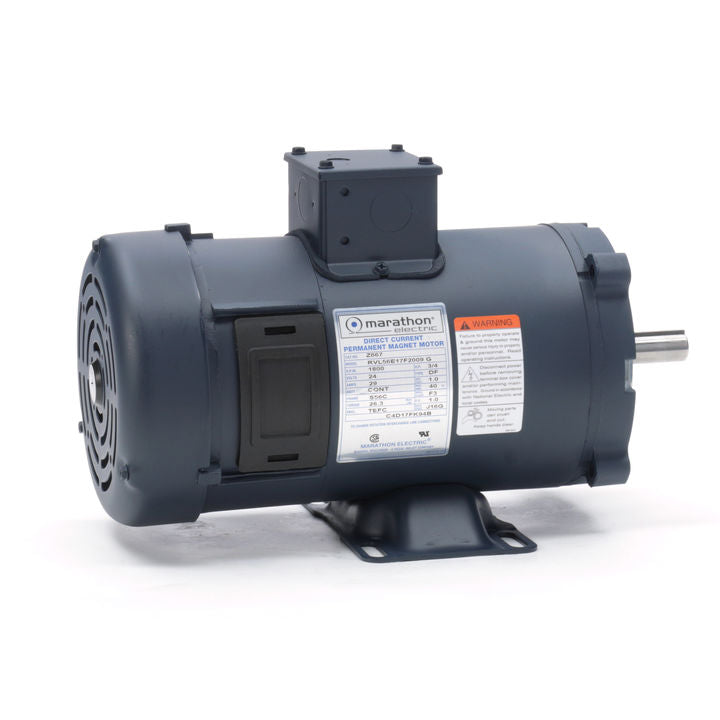

Marathon Electric Z667, 3/4 Hp,1750 Rpm, 56C FR, 24 Vdc, TEFC, C-Face Footed (Removable Base), Low Voltage, DC Permanent Magnet, 56E17F2009

Marathon Electric Z667, 3/4 Hp,1750 Rpm, 56C FR, 24 Vdc, TEFC, C-Face Footed (Removable Base), Low Voltage, DC Permanent Magnet, 56E17F2009

$1,608.00
$1,608.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,608.00 $1,527.60
Sale

Z667, 3/4 Hp,1750 Rpm, 56C FR, 24 Vdc, TEFC, C-Face Footed (Removable Base), Low Voltage, DC Permanent Magnet, 56E17F2009.

Engineering Data

Output HP : 0.75 HP
Output KW : 0.56 kW
Voltage : 24 V
Current : 29.0 A
Speed : 1800 RPM
Service Factor : 1
Efficiency : 77 %
Duty : Continuous
Insulation Class : F
Frame : S56C
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y CE : N
Technical Specifications
Rotation : Reversible
Mounting : Rigid C Base
Overall Length : 12.82 in
Frame Length : 5.47 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.94 in
