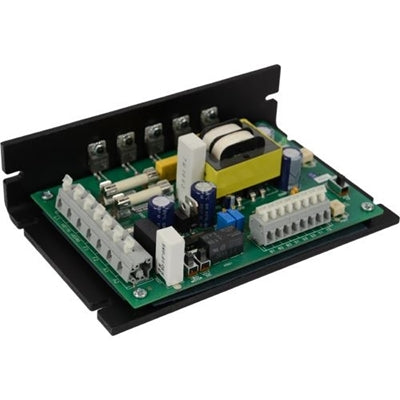

American Controls MHS403-25, Line Voltage DC Drive, 230 Vac Input, 0-180 Vac Output, 2-5 Hp, Open Chassis, Field Wound Brushed Motors

MHS403-25, Line Voltage DC Drive, 230 Vac Input, 0-180 Vac Output, 2-5 Hp, Open Chassis, Field Wound Brushed Motors

The MHS series of drives adds to our already feature rich 1Q offering. With an isolated input that can accept a grounded 4-20 mA or 0-10 VDC signal, Programmable Logic Control (PLC) or motion card connectivity is easy. The addition of cage clamp terminals on all logic connections, and power connections on some models, makes installation a breeze. Aside from having all the standard calibration adjustments offered by our other 1Q drives, the MHS series also offers start/stop push button inputs, dual voltage power capability, on-board fusing, and tachogenerator feedback inputs for even more precise control of motor speed. With a wide 1/20 - 5 horsepower range, this series can control almost any PM or shunt-wound motor.
