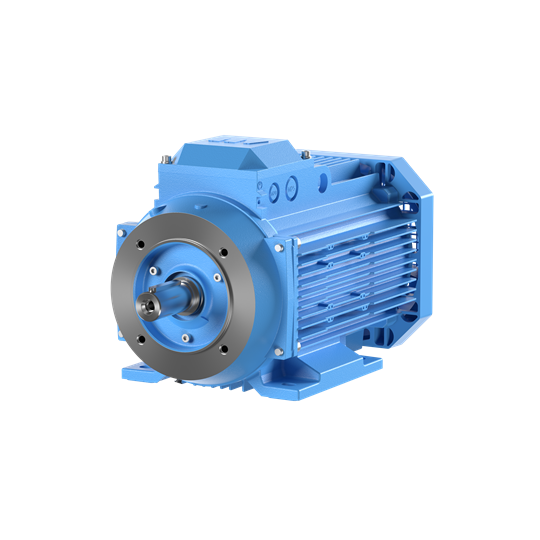

Baldor Electric MM08554-S-AP .55 KW/ 3/4 HP, 1500/1800 Rpm, 80 Frame, B3 Flange, 230-400/460 Vac, 3 Phase Input, Metric IEC Frame, C-Face Foot Mounted

Baldor Electric MM08554-S-AP .55 KW/ 3/4 HP, 1500/1800 Rpm, 80 Frame, B3 Flange, 230-400/460 Vac, 3 Phase Input, Metric IEC Frame, C-Face Foot Mounted

$466.00
$466.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

MM08554-S-AP .55 KW/ 3/4 HP, 1500/1800 Rpm, 80 Frame, B3 Flange, 230-400/460 Vac, 3 Phase Input, Metric IEC Frame, C-Face Foot Mounted

Engineering Data

Catalog Number MM08554-S-AP
Frame 80
Frequency 50.00 Hz
60.00 Hz
Output @ Frequency .55 KW @ 50 HZ
.55 KW @ 60 HZ
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230 V @ 50 HZ
400 V @ 50 HZ
460 V @ 60 HZ
Ambient Temperature 40 °C
Auxillary Box Top
Current @ Voltage 1.15 A @ 460 V
1.29 A @ 400 V
2.24 A @ 230 V
Duty Rating S1
High Voltage Full Load Amps 1.2 a
Insulation Class F
IP Rating IP55
Motor Standards NEMA
Speed 1406 rpm
1721 rpm
Speed Code Single Speed
Starting Method Full Voltage
