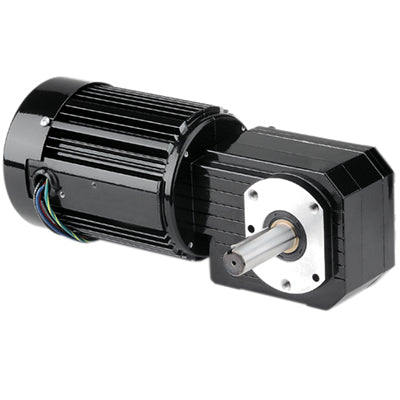

Bodine Electric 2236, 3/8 Hp, 6 Rpm, 280:1, 380 Lb-in., 42R6BFPP-GB, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2236, 3/8 Hp, 6 Rpm, 280:1, 380 Lb-in., 42R6BFPP-GB, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$859.24
$859.24
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2236, 3/8 Hp, 6 Rpm, 280:1, 380 Lb-in., 42R6BFPP-GB, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 6
Fixed Speed Torque (lb-in) 380
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 2.0
Rated Frequency (Hz) 60
Gear Ratio 280
Variable Speed (rpm) 0.6-8.2
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 380
SOA Torque At 60Hz 380
SOA Torque At Max Hz 380
Length XH (inches) 12.1
Weight (lbs) 19.5
Connection Diagram 07410881
Motor Type 42R6BFPP-GB
HPDecimal 0.375
