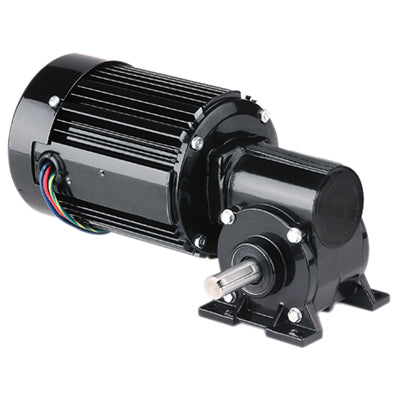

Bodine Electric 2275, 3/8 Hp, 57 Rpm, 30:1, 109 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric 2275, 3/8 Hp, 57 Rpm, 30:1, 109 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$730.86
$730.86
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2275, 3/8 Hp, 57 Rpm, 30:1, 109 Lb-in., 42R6BFPP-5N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 57
Fixed Speed Torque (lb-in) 109
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Gear Ratio 30
Variable Speed (rpm) 5.9-77
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 104
SOA Torque At 60Hz 104
SOA Torque At Max Hz 104
Connection Diagram 07410007
Motor Type 42R6BFPP-5N
Length XH (inches) 10.75
Weight (lbs) 17.5
HPDecimal 0.375
