Industrial Motors

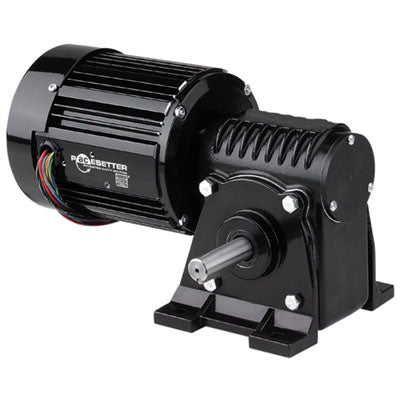

Bodine Electric, 2280, 3/4 Hp, 35 Rpm, 48:1, 296 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric, 2280, 3/4 Hp, 35 Rpm, 48:1, 296 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$1,019.39
$1,019.39
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2280, 3/4 Hp, 35 Rpm, 48:1, 296 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 35
Fixed Speed Torque (lb-in) 296
Motor Output Power (hp) 3/4
Voltage (AC) 230/460
Current (amps) 2.7/1.3
Rated Frequency (Hz) 60
Gear Ratio 48
Variable Speed (rpm) 3.3-48
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 272
SOA Torque At 60Hz 272
SOA Torque At Max Hz 272
Connection Diagram 07410012
Motor Type 48R6BFPP-5H
HPDecimal 0.75
Length XH (inch) 13.4
Weight (lbs) 40
