Industrial Motors

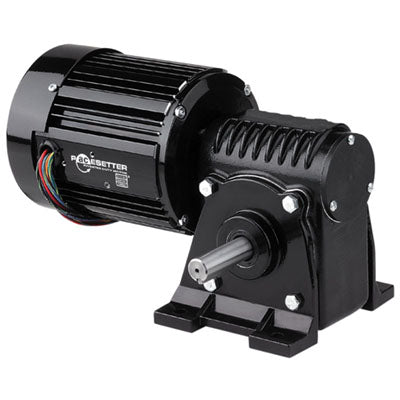

Bodine Electric, 2283, 3/4 Hp, 170 Rpm, 10:1, 178 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric, 2283, 3/4 Hp, 170 Rpm, 10:1, 178 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$1,019.39
$1,019.39
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2283, 3/4 Hp, 170 Rpm, 10:1, 178 Lb-in., 48R6BFPP-5H, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 170
Fixed Speed Torque (lb-in) 178
Motor Output Power (hp) 3/4
Voltage (AC) 230/460
Current (amps) 2.7/1.3
Rated Frequency (Hz) 60
Gear Ratio 10
Variable Speed (rpm) 16-228
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 152
SOA Torque At 60Hz 210
SOA Torque At Max Hz 180
Connection Diagram 07410012
Motor Type 48R6BFPP-5H
HPDecimal 0.75
Length XH (inch) 13.4
Weight (lbs) 40
View full details

Attachments
