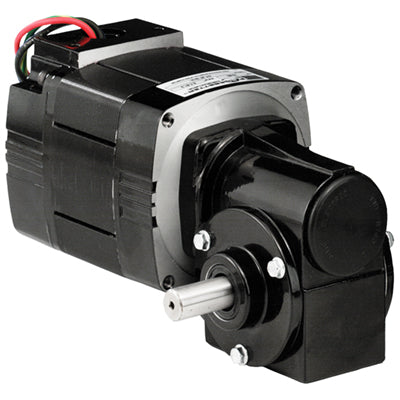

Bodine Electric, 2293, 1/17 Hp, 43 Rpm, 40:1, 37 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric, 2293, 1/17 Hp, 43 Rpm, 40:1, 37 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$462.67
$462.67
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2293, 1/17 Hp, 43 Rpm, 40:1, 37 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 43
Fixed Speed Torque (lb-in) 37
Motor Output Power (hp) 1/17
Voltage (AC) 230
Current (amps) 0.48
Rated Frequency (Hz) 60
Gear Ratio 40
Variable Speed (rpm) 3.3-54
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 37
SOA Torque At 60Hz 37
SOA Torque At Max Hz 37
Length XH (inches) 7.24
Weight (lbs) 7.5
Connection Diagram 07410007
Motor Type 30R4BEPP-3N
HP Decimal 0.0588
