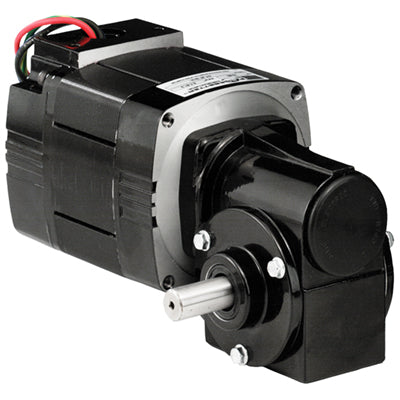

Bodine Electric, 2294, 1/17 Hp, 85 Rpm, 20:1, 25 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric, 2294, 1/17 Hp, 85 Rpm, 20:1, 25 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$462.67
$462.67
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2294, 1/17 Hp, 85 Rpm, 20:1, 25 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 85
Fixed Speed Torque (lb-in) 25
Motor Output Power (hp) 1/17
Voltage (AC) 230
Current (amps) 0.48
Rated Frequency (Hz) 60
Gear Ratio 20
Variable Speed (rpm) 6.6-108
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 24
SOA Torque At 60Hz 36
SOA Torque At Max Hz 36
Length XH (inches) 7.24
Weight (lbs) 7.5
Connection Diagram 07410007
Motor Type 30R4BEPP-3N
HPDecimal 0.0588
