Industrial Motors

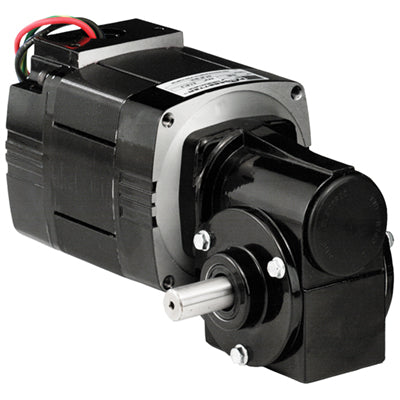

Bodine Electric, 2296, 1/17 Hp, 170 Rpm, 10:1, 14 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Bodine Electric, 2296, 1/17 Hp, 170 Rpm, 10:1, 14 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

$462.67
$462.67
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2296, 1/17 Hp, 170 Rpm, 10:1, 14 Lb-in., 30R4BEPP-3N, 230 Vac., Right Angle, AC Pacesetter Inverter Duty Gear Motor

Specifications

Speed (rpm) 170
Fixed Speed Torque (lb-in) 14
Motor Output Power (hp) 1/17
Voltage (AC) 230
Current (amps) 0.48
Rated Frequency (Hz) 60
Gear Ratio 10
Variable Speed (rpm) 13-216
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 16
SOA Torque At 60Hz 28
SOA Torque At Max Hz 22
Length XH (inches) 7.24
Weight (lbs) 7.5
Connection Diagram 07410007
Motor Type 30R4BEPP-3N
HPDecimal 0.0588
