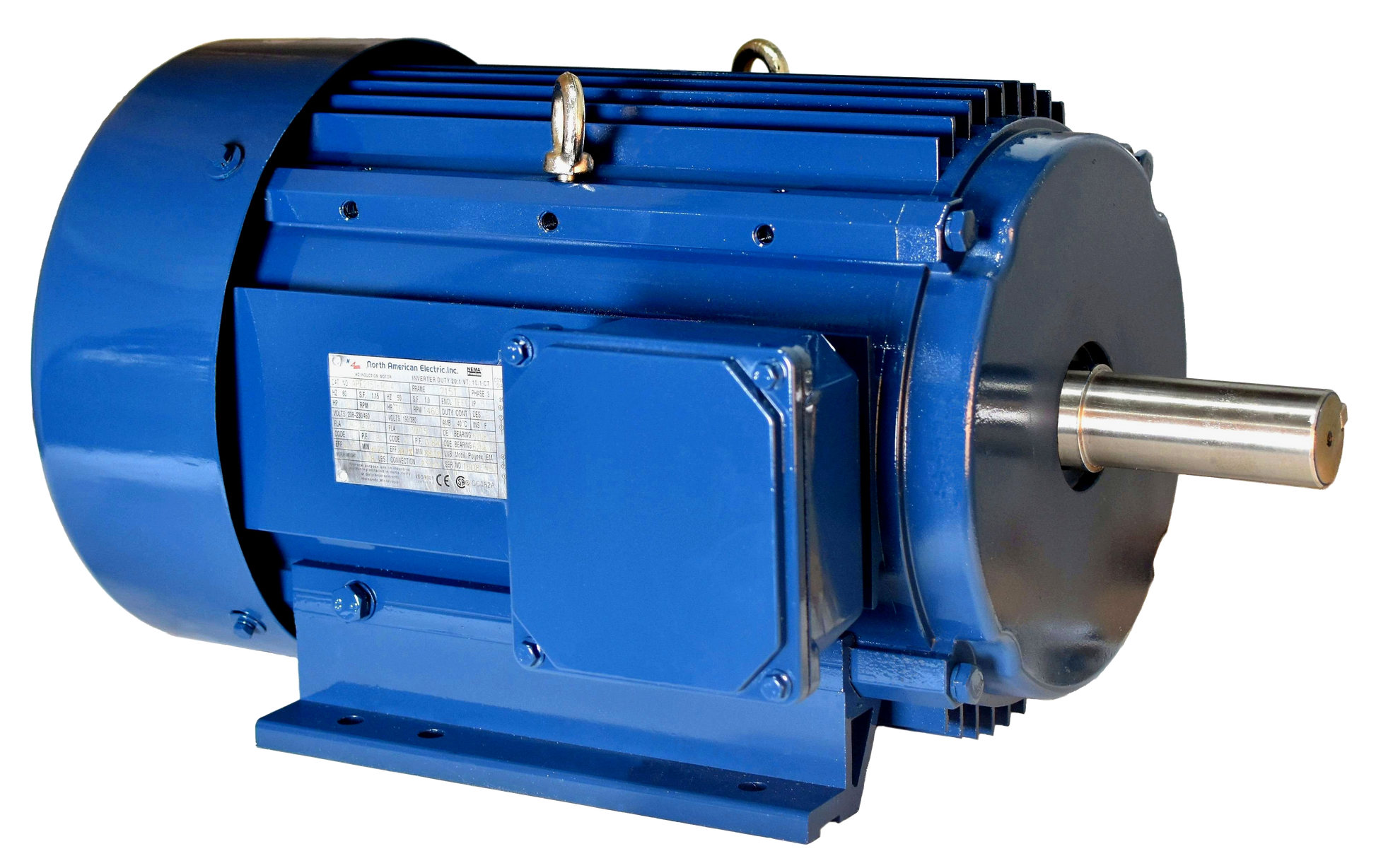

North American Electric APE184T-5-4, 5 HP, 1800 RPM, 184T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Aluminum, Prem Eff, Inverter Duty

APE184T-5-4, 5 HP, 1800 RPM, 184T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Aluminum, Prem Eff, Inverter Duty

Engineering Data

HP 5
RPM 1800
Frame 184T
Mult. Sym. M13
Volts 208-230/460
Enclosure TEFC
F.L. Eff. 89.5
"C" Dim. 16.6
F.L. Amps 6.7

Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
Class I, Div II Groups ABCD, T2B
Suitable for wye-delta start on 213T frame and above
Dual voltage ratings suitable for part wind start on lower voltage
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
Suitable for 575V @ 1.0 Service Factor
Inverter Duty (20:1 variable torque; 10:1 constant torque
Vacuum Pressure Impregnation for all windings
Sealed bearings
Class F insulation system, class B rise at full load
40° C ambient continuous duty
Corrosion resistant paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled on most frames for mounting flexibility
Lifting provisions
Condensation drains with plastic plugs
IP55 Protection – Terminal box is sealed for IP66 protection
CSA + C + US Certification
ISO 9001 Certification
