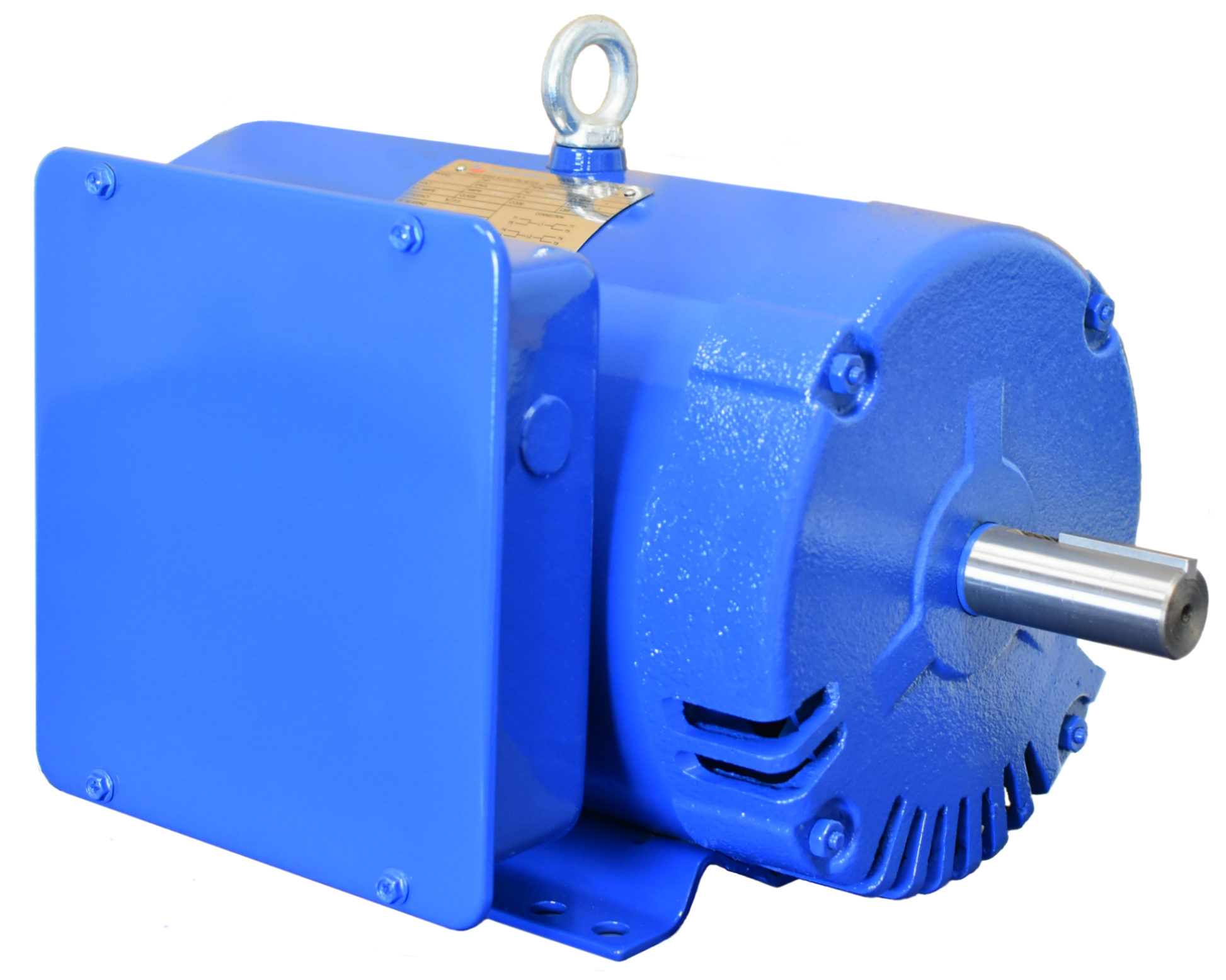

North American Electric D182T3S4C, 3 HP, 1800 RPM, 182T Frame, 208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Compressor Duty, Rolled Steel

North American Electric D182T3S4C, 3 HP, 1800 RPM, 182T Frame, 208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Compressor Duty, Rolled Steel

$640.50
$640.50
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$640.50 $608.48
Sale

D182T3S4C, 3 HP, 1800 RPM, 182T Frame, 208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., ODP, Compressor Duty, Rolled Steel

Engineering Data

HP 3
RPM 1800
Frame 182T
Mult. Sym. M9
Volts 208-230
Enclosure ODP
F.L. Eff. 84.9
"C" Dim. 15.8"
F.L. Amps 11.76

High Efficiency Design
1.15 Service Factor @ 60 hertz
Vacuum Pressure Impregnation for all windings
Sealed bearings
Class B insulation system, class B rise at full load
40° C ambient continuous duty
Stainless steel nameplate and zinc plated hardware
Feet are dual drilled for mounting flexibility
High starting torques
NEMA Design B performance
Rolled Steel frame construction; Cast Iron endbells
IP22 Protection as standard
CSA + C + US Certification
Meets or exceeds NRCan efficiency requirements
ISO 9001 Certification
