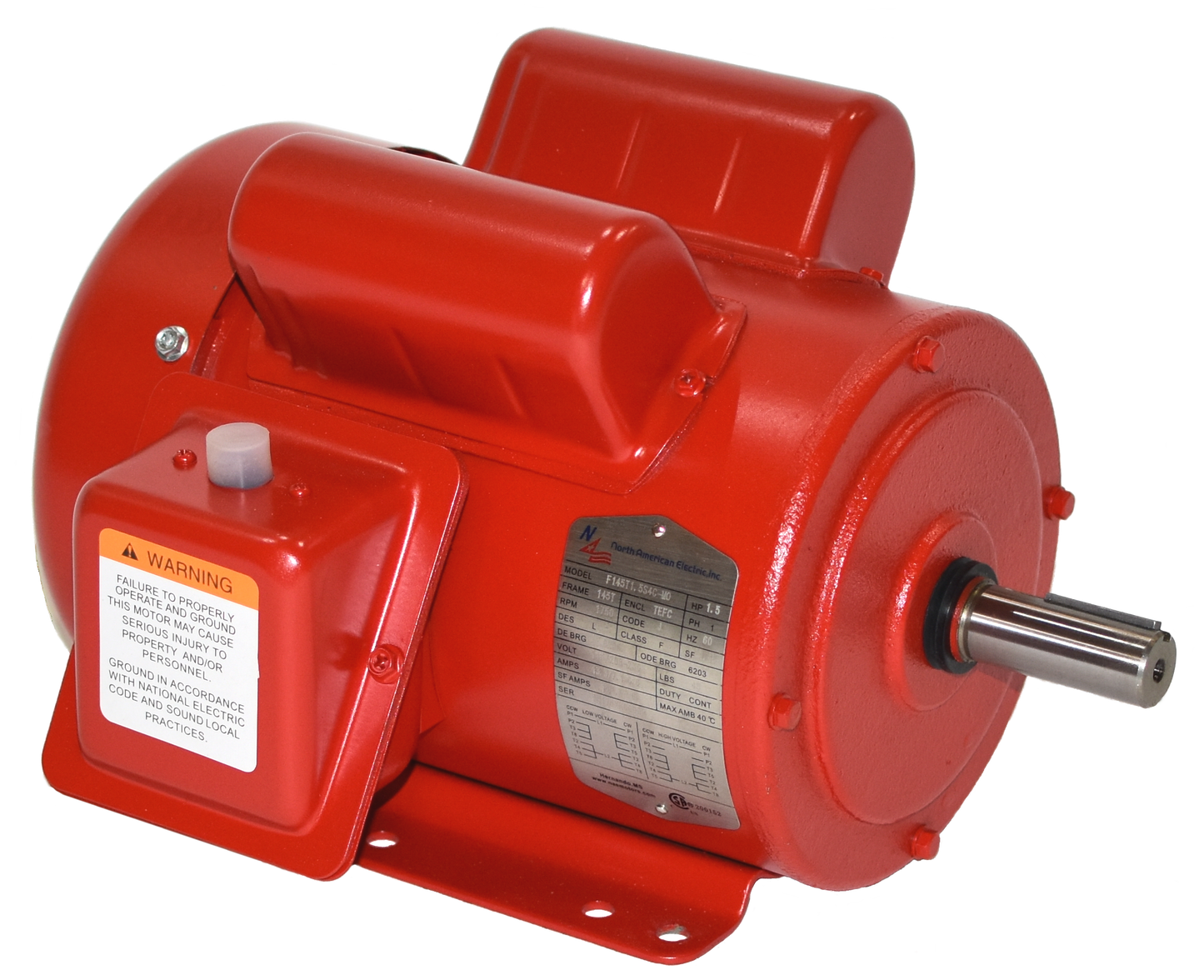

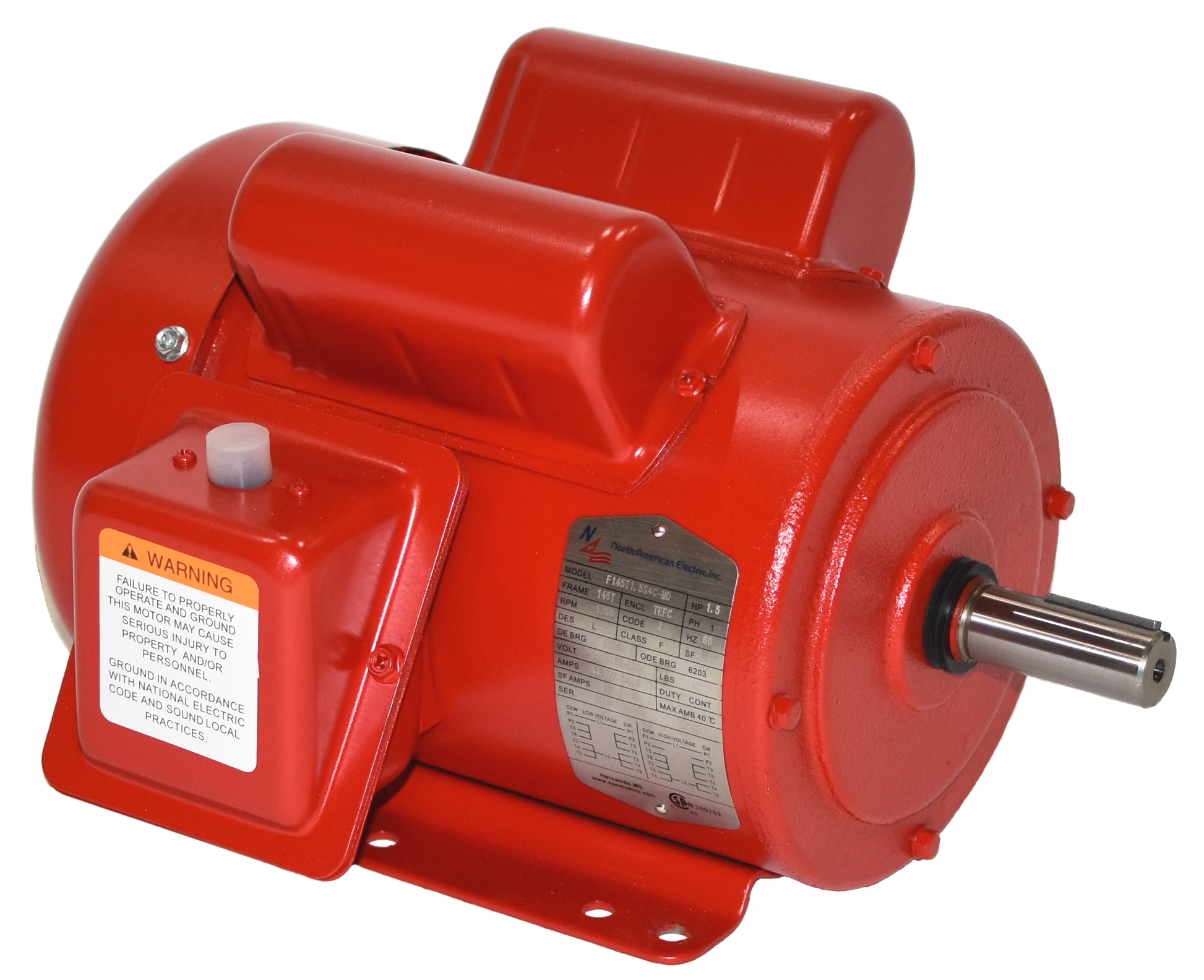

North American Electric F182T3S4C-MO, 3 HP, 1800 RPM, 182T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

North American Electric F182T3S4C-MO, 3 HP, 1800 RPM, 182T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

$941.78
$941.78
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$941.78 $894.70
Sale

F182T3S4C-MO, 3 HP, 1800 RPM, 182T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

Engineering Data

HP 3
RPM 1800
Frame 182T
Mult. Sym. M10
Volts 208-230/460
Enclosure TEFC
F.L. Eff. 81.5
"C" Dim. 16.8"
F.L. Amps 12.6

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
