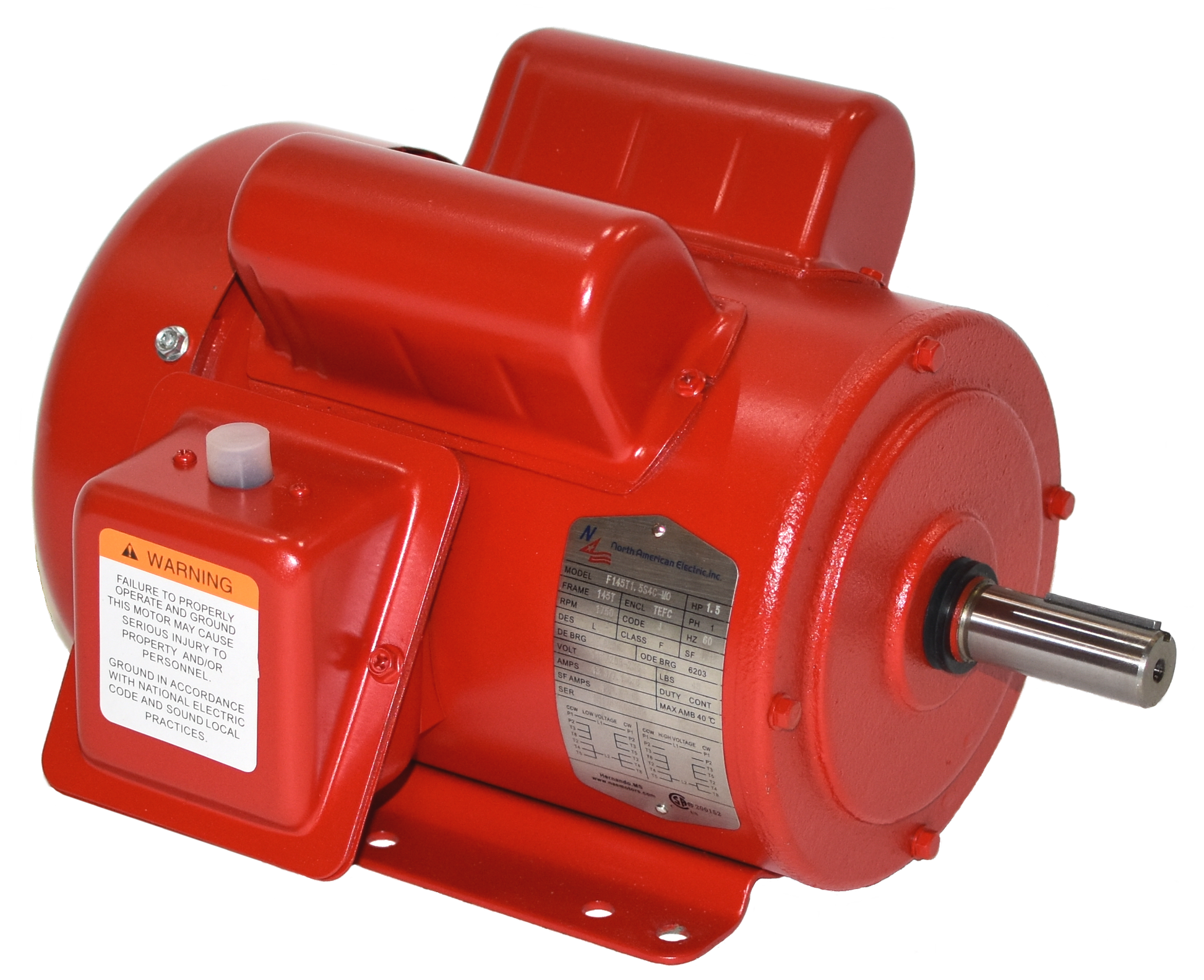

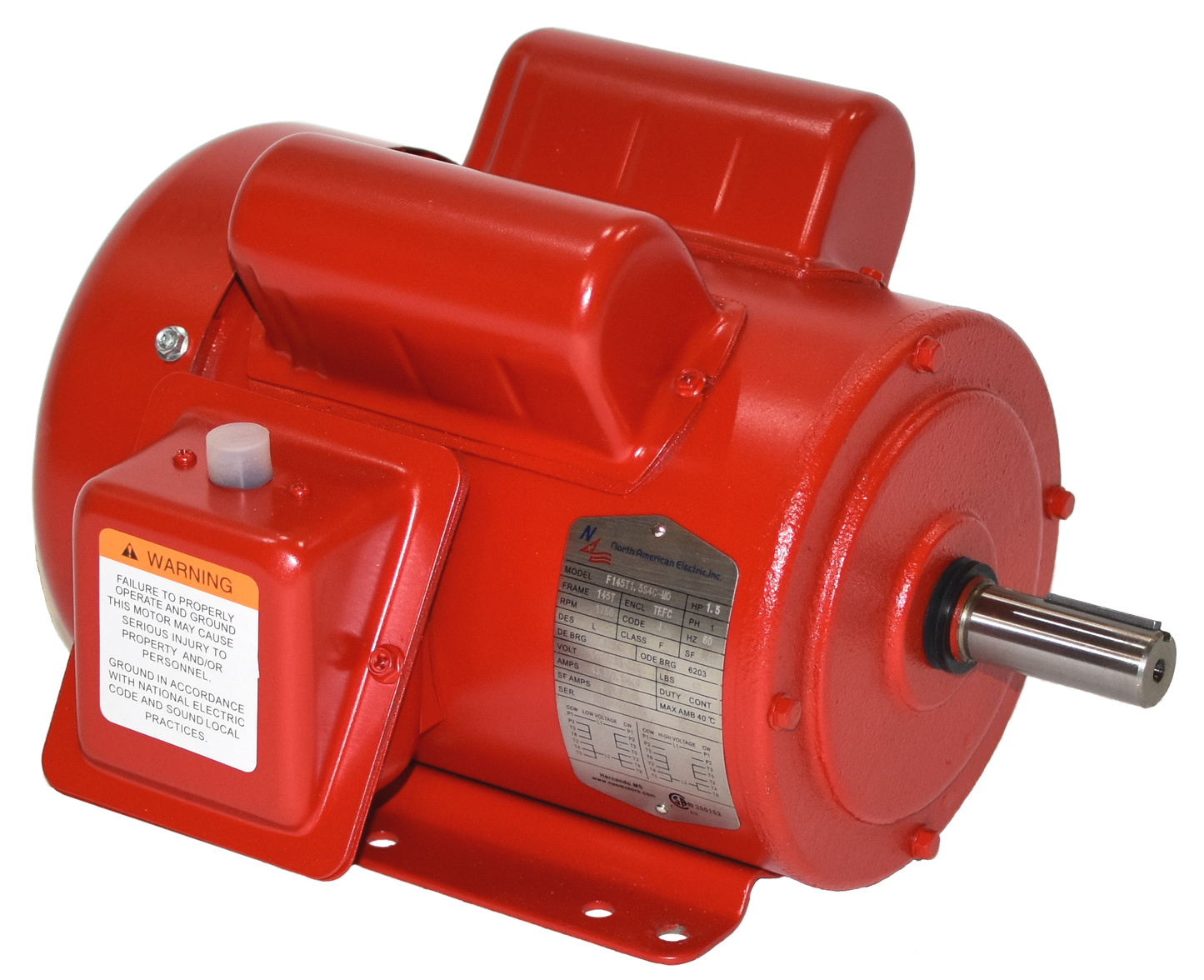

North American Electric F184T5S4C-MO, 5 HP, 1800 RPM, 184T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

North American Electric F184T5S4C-MO, 5 HP, 1800 RPM, 184T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

$1,239.67
$1,239.67
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,239.67 $1,177.69
Sale

F184T5S4C-MO, 5 HP, 1800 RPM, 184T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel, Manual Overload

Engineering Data

HP 5
RPM 1800
Frame 184T
Mult. Sym. M10
Volts 208-230/460
Enclosure TEFC
F.L. Eff. 84.7
"C" Dim. 17.9
F.L. Amps 20

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
