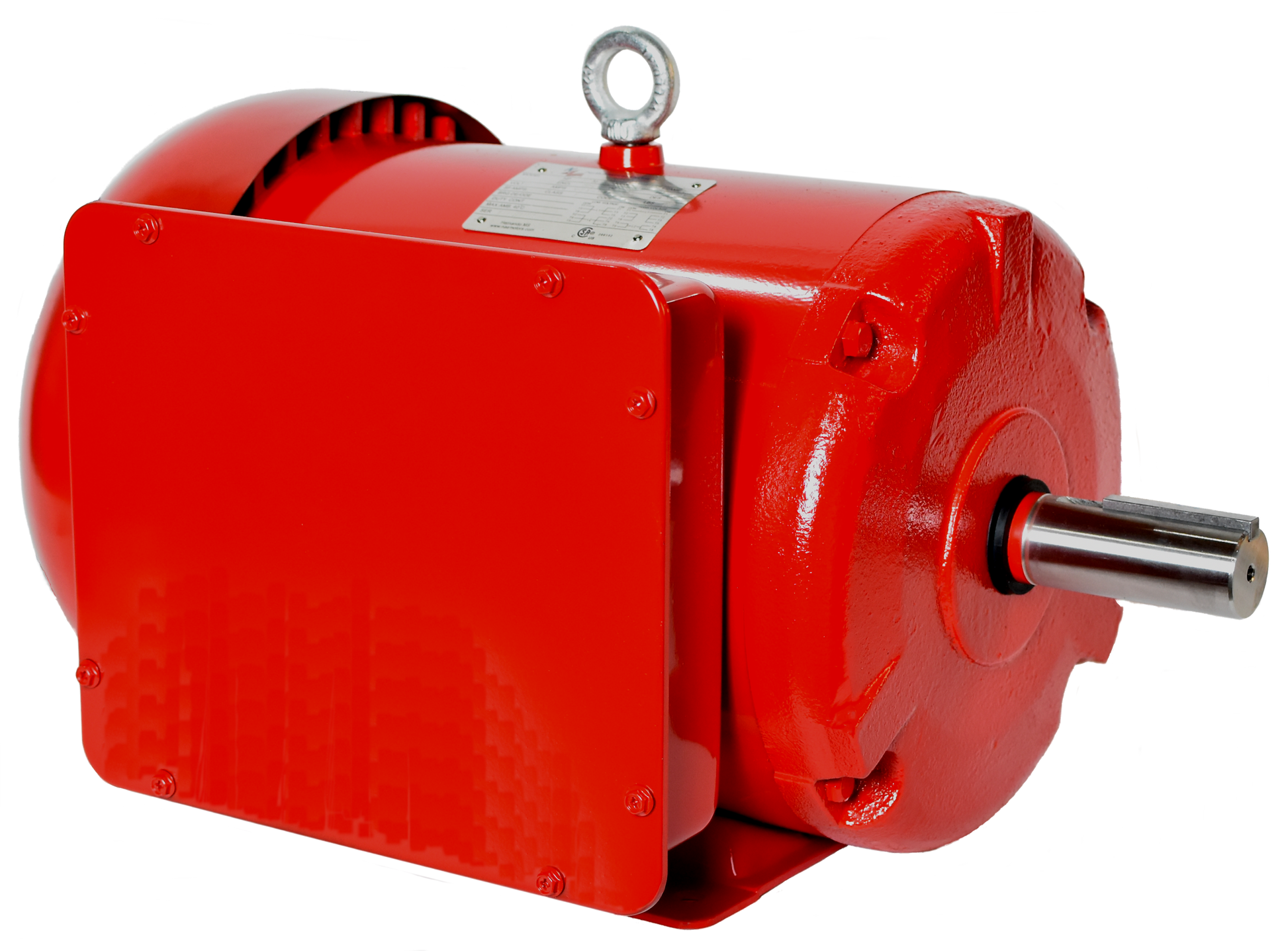

North American Electric F215T10S4C, 10 HP, 1800 RPM, 215T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel

North American Electric F215T10S4C, 10 HP, 1800 RPM, 215T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel

$2,192.87
$2,192.87
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,192.87 $2,083.23
Sale

F215T10S4C, 10 HP, 1800 RPM, 215T Frame, 208-230/460V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Farm Duty, Rolled Steel

Engineering Data

HP 10
RPM 1800
Frame 215T
Mult. Sym. M10
Volts 208-230/460
Enclosure TEFC
F.L. Eff. 88.7
Notes 2
"C" Dim. 20.3
F.L. Amps 37.8

Totally Enclosed Fan Cooled
High Starting Torques
Manual Overload Protection (1/3HP thru 5HP)
Capacitor Start / Capacitor Run Design
Rolled Steel Frames
Double shielded bearings
Class F insulation system, class B rise at full load
Vacuum Pressure Impregnation for windings
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
C-Flange field conversion kits available
Lifting provisions on 182T and above
