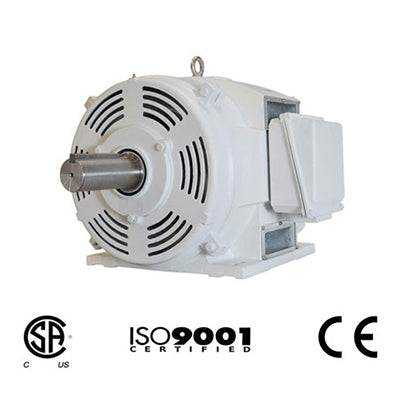

North American Electric OWP365T-40-6-ODP, 40 HP, 1200 RPM, 365T Frame, 230/460/796V, 3PH, NEMA Design D, 60HZ, 1.15 S.F., ODP, Oil Well Pump Motor, Cast Iron, Inverter Duty

North American Electric OWP365T-40-6-ODP, 40 HP, 1200 RPM, 365T Frame, 230/460/796V, 3PH, NEMA Design D, 60HZ, 1.15 S.F., ODP, Oil Well Pump Motor, Cast Iron, Inverter Duty

$7,605.79
$7,605.79
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$7,605.79 $7,225.51
Sale

OWP365T-40-6-ODP, 40 HP, 1200 RPM, 365T Frame, 230/460/796V, 3PH, NEMA Design D, 60HZ, 1.15 S.F., ODP, Oil Well Pump Motor, Cast Iron, Inverter Duty

PRODUCT DETAILS

HP 40
RPM 1200
Frame 365T
Mult. Sym. M6
Volts 230/460/796
Enclosure ODP
Frame Type NEWT
F.L. Eff. 87.5
"C" Dim. 29.3
F.L. Amps 56

Meets or exceeds NEMA Design D performance standards
High Torque/High Slip (5 – 8%)
Inverter Duty (10:1 Constant Torque)
Open Drip Proof
Vacuum Pressure Impregnation for all windings
Thermistors in the windings
Double shielded bearings thru 215T frame
Greasable bearings 254T frame and above
Mechanical Oil Seal on both ends for 254T frame and above
Class F insulation system, class B rise at full load
Class H, spike resistant wire used for windings
40° C ambient
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
Cast iron frame construction including the conduit box
IP 23 Protection
