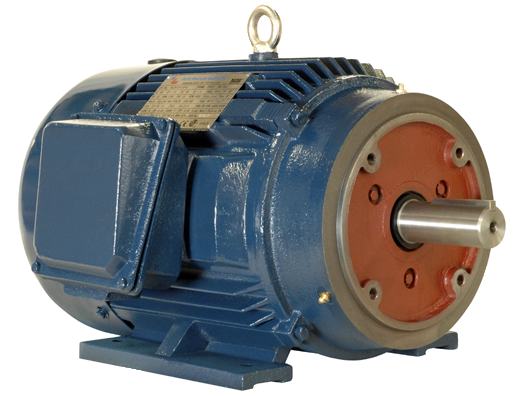

North American Electric PE182JM-3-2, 3 HP, 3600 RPM, 182JM Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Closed Coupled Pump Motor, Cast Iron, Prem Eff, Inverter Duty

PE182JM-3-2, 3 HP, 3600 RPM, 182JM Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Closed Coupled Pump Motor, Cast Iron, Prem Eff, Inverter Duty

PRODUCT DETAILS

HP 3
RPM 3600
Frame 182JM
Mult. Sym. M17
Volts 208-230/460
Enclosure TEFC
Frame Type NEJM
F.L. Eff. 85.5
"C" Dim. 18.5
F.L. Amps 3.8

Meets or exceeds EPACT ’92 and NRCan efficiency requirements
Suitable for wye-delta start on 213JM & 213JP frame and above
Dual voltage ratings suitable for part wind start on lower voltage
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
Vacuum Pressure Impregnation for all windings
Sealed bearings thru 215JM & 215JP frame
Greasable bearings 254JM & 254JP frame and above
Class F insulation system, class B rise at full load
40° C ambient continuous duty
Corrosion resistant paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled on most frames for mounting flexibility
NEMA Design B performance 143JM through 326JM, & 143JP through 326JP
Cast iron frame construction including the conduit box
Lifting provisions on 143JM & 143JP frame and above
Condensation drains with plastic plugs
IP55 Protection – Terminal box is sealed for IP66 protection
CSA + C + US Certification
ISO 9001 Certification
