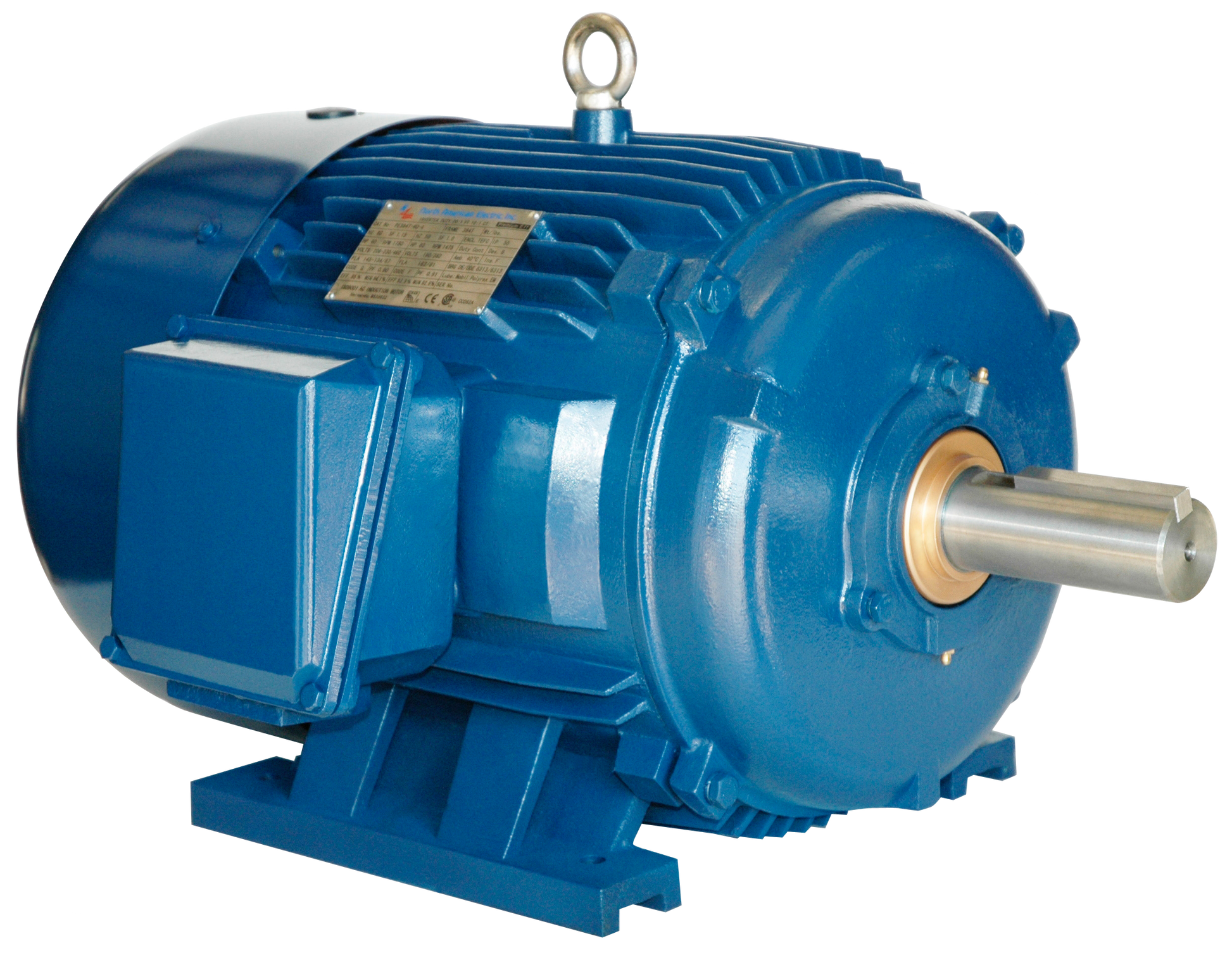

North American Electric PE182T-3-2-575V, 3 HP, 3600 RPM, 182T Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

PE182T-3-2-575V, 3 HP, 3600 RPM, 182T Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

General Purpose Cast Iron

Applications:

General purpose use on pumps, fans, blowers, compressors, conveyors, material handling and other industrial machinery installed in damp, dusty or dirty environments. Suitable for use with variable frequency drives.

Features:

Output: 3 HP
RPM: 3600
Voltage: 575V @ 60Hz)
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame: 182T
Mounting: Rigid Base
Efficiency: 86.5 (NEMA PREMIUM)
Shaft dimensions (dia x len): 1-1/8" x 2-2/4"
Factory New with manufacturer's warranty
1.15 Service Factor @ 60 Hertz; 1.0 Service Factor @ 50 Hertz; Suitable for 575V @ 1.0 Service Factor
Sealed Bearings Through 215T Frame; Regreasable Open Bearings 254T Frame and Above; Insulated Bearing on ODE Available on 444T and Above
Class F Insulation System; Class B Rise at Full Load; Class H Vacuum Pressure Impregnation (VPI) Resin for All Windings
40 degree C Ambient Continuous Duty
Stainless Steel Nameplate and Zinc Plate Hardware
NEMA Design B Performance / High Starting Torque
Feet are Dual Drilled for Mounting Flexibility
Dual Voltage Ratings Suitable for Part Wind Start on Lower Voltage; Single Voltage (460V) Ratings are Suitable for Part Wind Start
Corrosion Resistant Epoxy Paint
F1 / F2 Reversible
Lifting Provision
Condensation Drains with Plugs
Windings Rated for 2200V Peak Voltage Spikes
IP55 Protection
Three (3) Year Warranty (Extended Warranty Available)
C-Flange & D-Flange Field Conversion Kits may be available - call Dealers for price & availability
NEMA Premium® (NEMA MG-1 Table 12-12)
Inverter Duty (20:1 Variable Torque; 10:1 Constant Torque)
Ball Bearing on Drive End
