North American Electric PE256T-10-6-575V, 10 HP, 1200 RPM, 256T Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

PE256T-10-6-575V, 10 HP, 1200 RPM, 256T Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

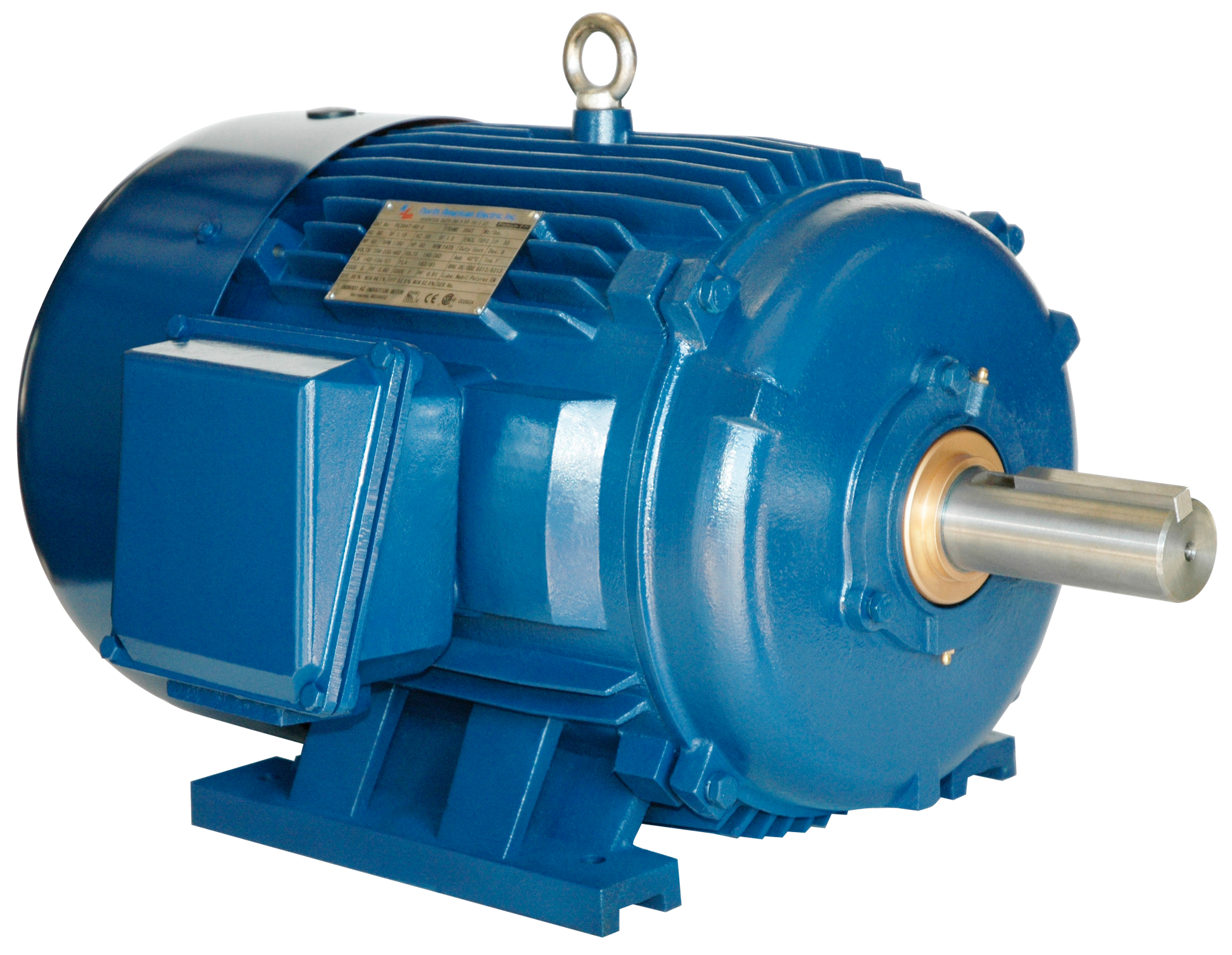

General purpose Heavy Duty Cast Iron Motor

Applications

General purpose use on pumps, fans, blowers, compressors, conveyors, material handling and other industrial machinery installed in damp, dusty or dirty environments. Suitable for use with variable frequency drives.

Features

Output: 10 HP
RPM: 1200
Voltage: 575V @ 60Hz)
Enclosure: TEFC (Totally Enclosed Fan Cooled)
Frame: 256T
Mounting: Rigid Base
Service Factor: 1.15
Efficiency: 91 (NEMA PREMIUM)
Bearings: 6309 / 6309
Shaft dimensions (dia x len): 1-5/8" x 4"
Factory New with manufacturer's warranty
1.15 Service Factor @ 60 Hertz; 1.0 Service Factor @ 50 Hertz; Suitable for 575V @ 1.0 Service Factor
Sealed Bearings Through 215T Frame; Regreasable Open Bearings 254T Frame and Above; Insulated Bearing on ODE Available on 444T and Above
Class F Insulation System; Class B Rise at Full Load; Class H Vacuum Pressure Impregnation (VPI) Resin for All Windings
40 degree C Ambient Continuous Duty
Stainless Steel Nameplate and Zinc Plate Hardware
NEMA Design B Performance / High Starting Torque
Feet are Dual Drilled for Mounting Flexibility
Dual Voltage Ratings Suitable for Part Wind Start on Lower Voltage; Single Voltage (460V) Ratings are Suitable for Part Wind Start
Corrosion Resistant Epoxy Paint
F1 / F2 Reversible
Lifting Provision
Condensation Drains with Plugs
Windings Rated for 2200V Peak Voltage Spikes
IP55 Protection
Three (3) Year Warranty (Extended Warranty Available)
C-Flange & D-Flange Field Conversion Kits Available
NEMA Premium (NEMA MG-1 Table 12-12)
Inverter Duty: 20:1 Variable Torque; 10:1 Constant Torque
12 Lead Part Wind Start at 230V
Ball Bearing on Drive End
