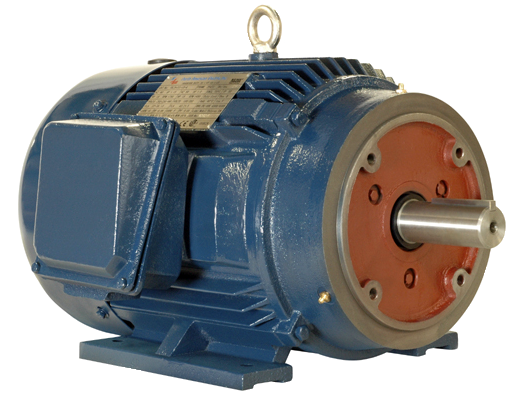

North American Electric PE284TC-15-6C 15 HP, 1200 RPM, 284T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

PE284TC-15-6C, 15 HP, 1200 RPM, 284T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

Engineering Data

Horse Power: 15
Phase: Three
Full Load RPM: 1180
Enclosure: TEFC
NEMA DESIGN C

Maximum 5% Slip
Low Starting Current
High Locked Rotor Torque
Normal Breakdown Torque
Suited For Equipment With High Inertia And High Starting Torques At Start - Like Positive Displacement Pumps, Conveyors

HORSE POWER: 25.0
FULL LOAD RPM: 1775
ENCLOSURE: TEFC
FRAME: 284JP
FULL LOAD AMPS AT RATED VOLTAGE: 30
FREQUENCY HZ: 60
VOLTAGE: 208-230/460
OVERALL LENGTH INCH: 30.35
OVERALL LENGTH MM: 770.89
FULL LOAD EFFICIENCY PERCENTAGE: 93.6
SERVICE FACTOR: 1.15
INSULATION CLASS: F
NEMA DESIGN: B
NEMA CODE: G
LOCKED ROTOR AMPS AT RATED VOLTAGE: 182
FULL LOAD POWER FACTOR RATIO: 0.84
FULL-LOAD TORQUE: 74.3
LOCKED-ROTOR TORQUE: 160
BREAKDOWN TORQUE: 255
DRIVE END BOTTOM BEARING: 6311
OPPOSITE DRIVE END UPPER BEARING: 6311
WEIGHT LBS: 395
RPM: 1800
OVERALL HEIGHT INCH: 14.5
OVERALL HEIGHT MM: 368.3
DRIVE END UPPER BEARING: 6311
OPPOSITE DRIVE END BOTTOM BEARING: 6311
MATERIAL: Cast Iron
INVERTER RATED OR DUTY: Inverter Duty
