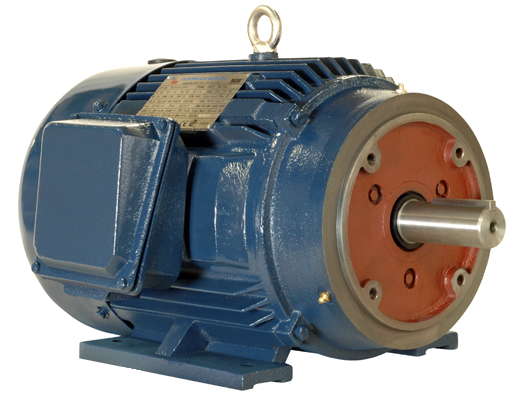

North American Electric PE284TC-25-4C 25 HP, 1800 RPM, 284T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

PE284TC-25-4C, 25 HP, 1800 RPM, 284T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

PRODUCT DETAILS
Brand name : North american electricinc
Series : NA-208-F1AF-TEFC-HDCI-GPMCF
Item Name : General Purpose Motor with C-Face
Short Desc : MOTOR-25-1800-284TC-3 PH--TEFC
UNSPSC : 26101112
F1/F2 reversible. Feet are dual drilled on most frames for mounting flexibility. Cast iron frame construction including the conduit box. Lifting provisions on 143T frame and above. Condensation drains with plastic plugs. IP55 Protection - terminal box is sealed for IP66 protection. Corrosion resistant paint. Stainless steel nameplate and zinc plated hardware. Totally enclosed fan cooled.

SPECS

Design & Construction

Bearing Type: Ball
Duty: Continuous
Enclosure Type: Totally Enclosed Fan-Cooled
Insulation Type: Class F
Mounting Type: F1 Assembly - Foot
Rotation: Reversible
Construction: Heavy Duty Cast Iron
Frame Type: 284TC
KVA Code: G
Seal Type: V

Performance Details

1/2 Load Efficiency: 92%
3/4 Load Efficiency: 92.5%
Full Load Efficiency: 92.4%
Speed Rating: 1800 rpm
Torque Rating: 74.3 lb-ft

General Features

Standards: CSA + CE + US Certification, ISO 9001 Certification, Meets or exceeds EISA Efficiency , Class I, Div II Groups ABCD, T2B

Environmental Condition

Temperature Rating: 40 deg C

Electrical Properties

Full Load Ampere: 66.3 A
HP Rating: 25 HP
Service Factor: 1
Voltage Rating: 208 V
1/2 Load Power Factor: 70%
3/4 Load Power Factor: 80%
Frequency Rating: 50 Hz
Full Load Power Factor: 85%
Locked Rotor Ampere: 182 A
Phase: 3-Phase

Physical Properties

Dimensions: 26.60 Inch L x 16.7 Inch H
Frame Size: 284
Shaft Diameter: 1.88 Inch
Shaft Length: 4.62 Inch
Weight: 372 lb

FEATURES & APPLICATIONS

Features :

Frequency Rating: 50/60 Hz
Service factor: 1.15 at 60 Hz, 1 at 50 Hz
Inverter Rated (10:1 variable torque, 5:1 constant torque)
Corrosion resistant paint
Full load ampere: 66.3 ‐ 60/30A at 208‐230/460V, 72/36A at 190/380V
Voltage rating: 208‐230/460V, 190/380V
Locked rotor ampere: 182.0A at 460V
Torque rating: 74.3 lb-ft (Full Load), 200 lb-ft (Locked Rotor), 250 lb-ft (Break Down)

Applications :

General purpose use on pumps, fans, blowers, compressors, conveyors, material handling and other industrial machinery installed in damp, dusty or dirty environments
