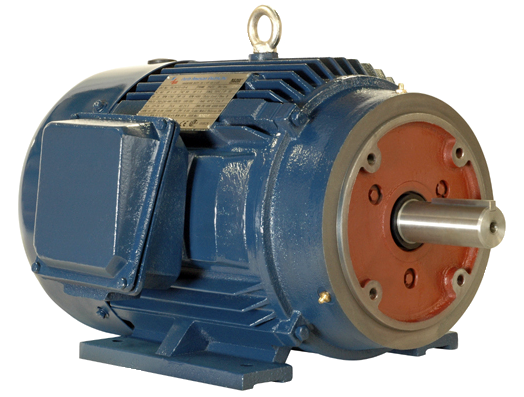

North American Electric PE284TSC-25-4 25 HP, 1800 RPM, 284TSC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

PE284TSC-25-4, 25 HP, 1800 RPM, 284TSC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

Engineering Data

Inverter Duty 20:1 Variable Torque/10:1 Constant Torque
Class 1 Div II Groups ABCD,T2B
Class 2 Div II Groups F &G
1.15 Service Factor @ 60 Hertz/1.0 Service Factor @ 50 Hertz/Suitable for 575V @ 1.0 Service Factor
Sealed Bearings 143T-215T Frame/Regreasable Open Bearings 254T-587UZ Frame
Insulated Bearing on ODE Available on 444T-587UZ
Class F Insulation System;Class B Rise at Full Load
Class H Vacuum Pressure Impregnation(VPI) Resin For All Windings
40 Degree C Ambient Continuous Duty
NEMA Design B Performance/High Starting Torque
Feet Are Dual Drilled For Mounting Flexibility(213T/215T,254T/256T......)
Part Wind Start Capability
Corrosion Resistant Epoxy Paint
Can Be Converted To F2 Mount
Lifting Provision Provided
Condensation Drain with Plugs
Windings Rated For 2200V Peak Voltage Spikes
IP55 Protection
C & D Flange Field Conversions Kits Available
