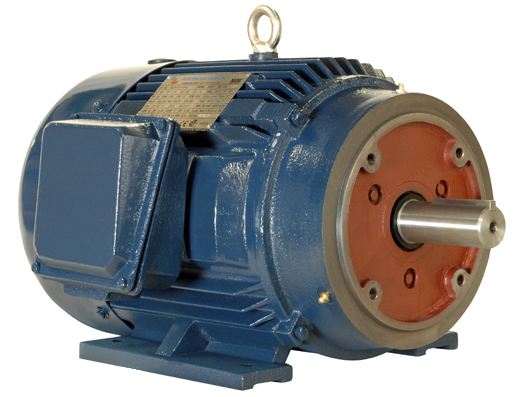

North American Electric PE324JM-40-4, 40 HP, 1800 RPM, 324JM Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Closed Coupled Pump Motor, Cast Iron, Prem Eff, Inverter Duty

PE324JM-40-4, 40 HP, 1800 RPM, 324JM Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Closed Coupled Pump Motor, Cast Iron, Prem Eff, Inverter Duty

PRODUCT DETAILS

Meets or exceeds EPACT ’92 and NRCan efficiency requirements
Suitable for wye-delta start on 213JM & 213JP frame and above
Dual voltage ratings suitable for part wind start on lower voltage
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
Vacuum Pressure Impregnation for all windings
Sealed bearings thru 215JM & 215JP frame
Greasable bearings 254JM & 254JP frame and above
Class F insulation system, class B rise at full load
40° C ambient continuous duty
Corrosion resistant paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled on most frames for mounting flexibility
NEMA Design B performance 143JM through 326JM, & 143JP through 326JP
Cast iron frame construction including the conduit box
Lifting provisions on 143JM & 143JP frame and above
Condensation drains with plastic plugs
IP55 Protection – Terminal box is sealed for IP66 protection
CSA + C + US Certification
ISO 9001 Certification

HP 40
RPM 1800
Frame 324JM
Mult. Sym. M17
Volts 208-230/460
Enclosure TEFC
Frame Type NEJM
F.L. Eff. 94.1
"C" Dim. 30.1
F.L. Amps 48
