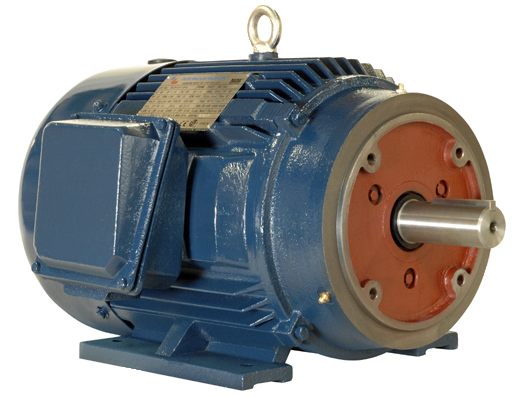

North American Electric PE324TC-25-6C 25 HP, 1200 RPM, 324T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

PE324TC-25-6C, 25 HP, 1200 RPM, 324T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

Engineering Data

Horse Power: 25
Phase: Three
Full Load RPM: 1185
Enclosure: TEFC
NEMA DESIGN C

Maximum 5% Slip
Low Starting Current
High Locked Rotor Torque
Normal Breakdown Torque
Suited For Equipment With High Inertia And High Starting Torques At Start - Like Positive Displacement Pumps, Conveyors

HORSE POWER: 40.0
FULL LOAD RPM: 1780
ENCLOSURE: TEFC
FRAME: 324JP
FULL LOAD AMPS AT RATED VOLTAGE: 46.6
FREQUENCY HZ: 60
VOLTAGE: 208-230/460
OVERALL LENGTH INCH: 32.93
OVERALL LENGTH MM: 836.422
FULL LOAD EFFICIENCY PERCENTAGE: 94.1
SERVICE FACTOR: 1.15
INSULATION CLASS: F
NEMA DESIGN: B
NEMA CODE: G
LOCKED ROTOR AMPS AT RATED VOLTAGE: 290
FULL LOAD POWER FACTOR RATIO: 0.83
FULL-LOAD TORQUE: 118.8
LOCKED-ROTOR TORQUE: 160
BREAKDOWN TORQUE: 245
DRIVE END BOTTOM BEARING: 6312
OPPOSITE DRIVE END UPPER BEARING: 6312
WEIGHT LBS: 530
RPM: 1800
OVERALL HEIGHT INCH: 15.9
OVERALL HEIGHT MM: 403.86
DRIVE END UPPER BEARING: 6312
OPPOSITE DRIVE END BOTTOM BEARING: 6312
MATERIAL: Cast Iron
INVERTER RATED OR DUTY: Inverter Duty
