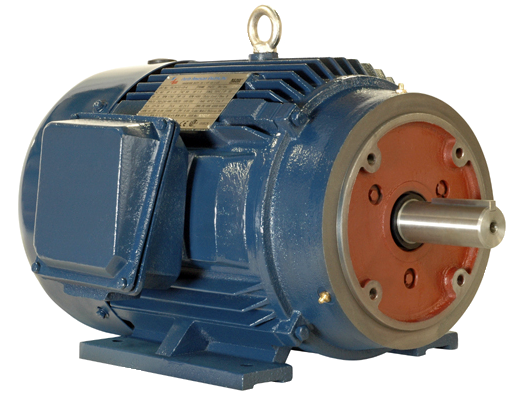

North American Electric PE324TC-40-2 40 HP, 3600 RPM, 324TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

North American Electric PE324TC-40-2 40 HP, 3600 RPM, 324TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

$5.00
$5.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$5.00 $4.75
Sale

PE324TC-40-2, 40 HP, 3600 RPM, 324TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

Engineering Data

Cast Iron Construction
TEFC (Totally Enclosed, Fan Cooled)
Three Phase, 208-230/460 Volts
575V Models Available
Inverter Duty (20:1 Variable Torque, 10:1 Constant Torque)
1.15 Service Factor @ 60 Hz; 1.0 Service Factor @ 50 Hz
Class F Insulation System
Class B Rise at Full Load
Class H Vacuum Pressure Impregnation (VPI) Resin for All Windings
NEMA Design B Performance / High Starting Torque
Feet Dual Drilled for Mounting Flexibility
Dual Voltage Ratings Suitable for Part Wind Start on Lower Voltage
F1 / F2 Reversible
Windings Rated for 2200V Peak Voltage Spikes
IP55 Protection
D-Flange Field Conversion Kits Available
