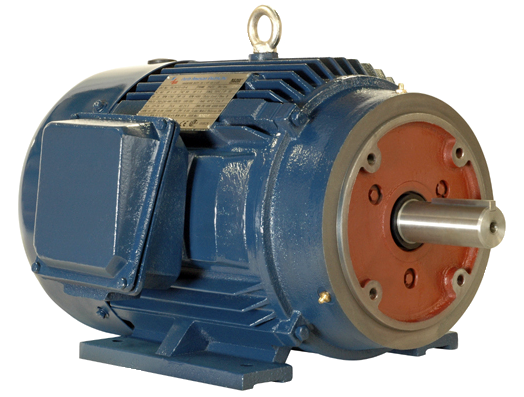

North American Electric PE364TC-40-6C 40 HP, 1200 RPM, 364T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

PE364TC-40-6C, 40 HP, 1200 RPM, 364T Frame, 208-230/460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty, C-Flange with Feet

Engineering Data

Horse Power: 40
Phase: Three
Full Load RPM: 1188
Enclosure: TEFC
NEMA DESIGN C

Maximum 5% Slip
Low Starting Current
High Locked Rotor Torque
Normal Breakdown Torque
Suited For Equipment With High Inertia And High Starting Torques At Start - Like Positive Displacement Pumps, Conveyors

HORSE POWER: 60.0
FULL LOAD RPM: 1780
ENCLOSURE: TEFC
FRAME: 364JP
FULL LOAD AMPS AT RATED VOLTAGE: 69.5
FREQUENCY HZ: 60
VOLTAGE: 208-230/460
OVERALL LENGTH INCH: 35
OVERALL LENGTH MM: 889
FULL LOAD EFFICIENCY PERCENTAGE: 95
SERVICE FACTOR: 1.15
INSULATION CLASS: F
NEMA DESIGN: B
NEMA CODE: G
LOCKED ROTOR AMPS AT RATED VOLTAGE: 435
FULL LOAD POWER FACTOR RATIO: 0.85
FULL-LOAD TORQUE: 177.6
LOCKED-ROTOR TORQUE: 160
BREAKDOWN TORQUE: 240
DRIVE END BOTTOM BEARING: 6313
OPPOSITE DRIVE END UPPER BEARING: 6313
WEIGHT LBS: 789
RPM: 1800
OVERALL HEIGHT INCH: 18.5
OVERALL HEIGHT MM: 469.9
DRIVE END UPPER BEARING: 6313
OPPOSITE DRIVE END BOTTOM BEARING: 6313
MATERIAL: Cast Iron
INVERTER RATED OR DUTY: Inverter Duty
