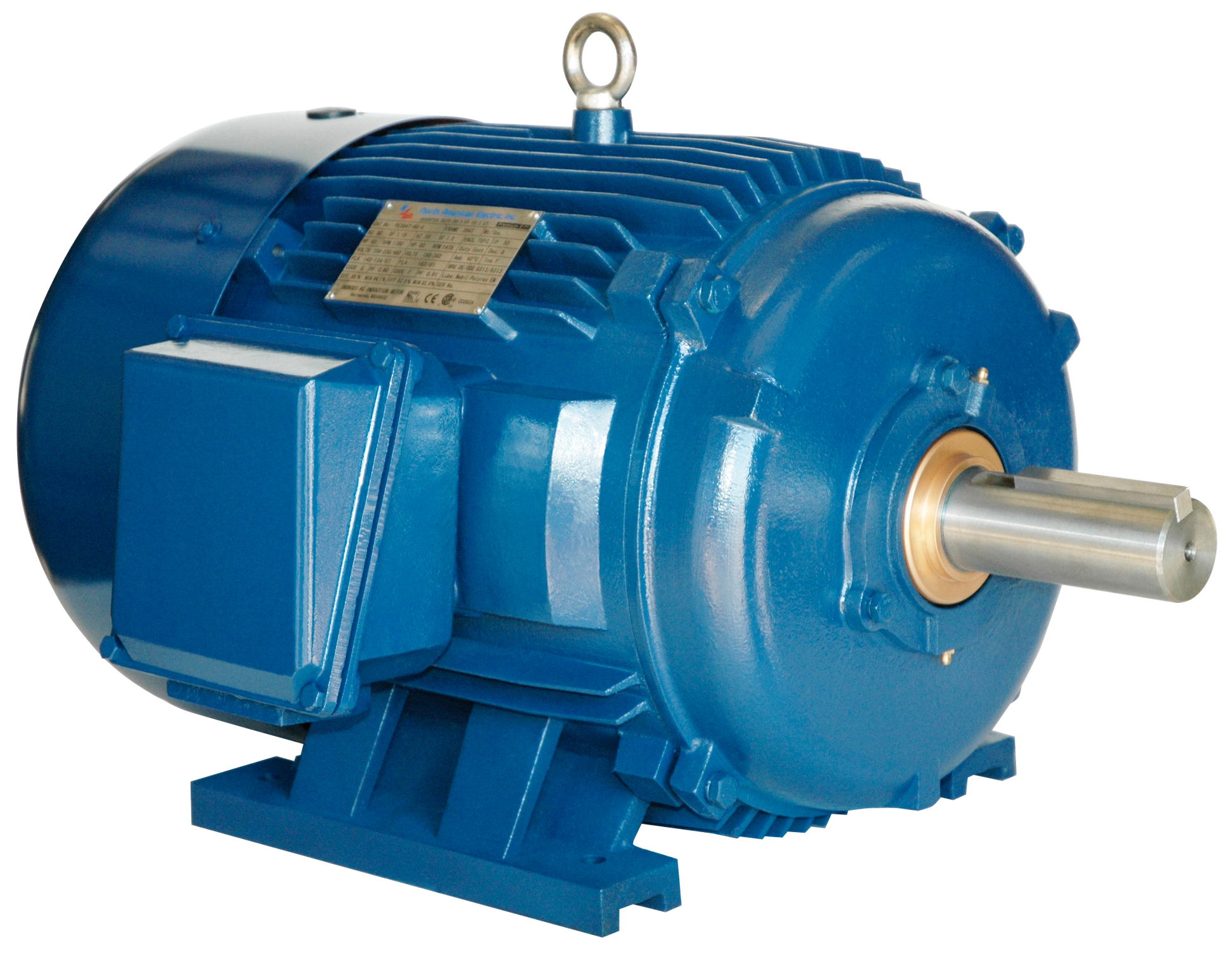

North American Electric PE404T-60-6-575V 60 HP, 1200 RPM, 404T Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

PE404T-60-6-575V, 60 HP, 1200 RPM, 404T Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Cast Iron, Prem Eff, Inverter Duty

SPECS

Design & Construction
Bearing Type: Ball
Duty: Inverter
Enclosure Type: Totally Enclosed Fan-Cooled
Insulation Type: Class F
Mounting Type: Rigid Base
Construction: Cast Iron Frame
Frame Type: 404T
KVA Code: G

Performance Details

Full Load Efficiency: 94.5%
Speed Rating: 1200 rpm
Torque Rating: 268 lb-ft

General Features

Type: Premium Efficient
Standards: ISO 9001, CSA Certified, CE Compliant

Environmental Condition

Temperature Rating: 40 deg C

Electrical Properties

Full Load Ampere: 73 A
HP Rating: 60 HP
Service Factor: 1.15
Voltage Rating : 575 V
Frequency Rating: 60 Hz
Full Load Power Factor: 81%

Physical Properties
Dimensions: 36.7 Inch L x 22.8 Inch H
Frame Size: 404
Shaft Diameter: 2.875 Inch
Shaft Length: 7.25 Inch
Weight: 1102 lb

FEATURES & APPLICATIONS
Features :

Service factor: 1.15 at 60 Hz
Full load ampere: 73A at 575V
Voltage rating: 208-230/460V
Torque rating: 268 lb-ft (Full Load), 250 lb-ft (Break Down), 150 lb-ft (Locked Rotor)
HP rating: 60 HP at 60 Hz
Speed rating: 1200 rpm at 60 Hz
Full load efficiency: 94.5% at 60 Hz
Full load power factor: 81% at 60 Hz
Applications :

For Pumps, Fans, Blowers, Compressors, Conveyors, Material Handling And Other Industrial Machinery Installed In Damp, Dusty Or Dirty Environments
