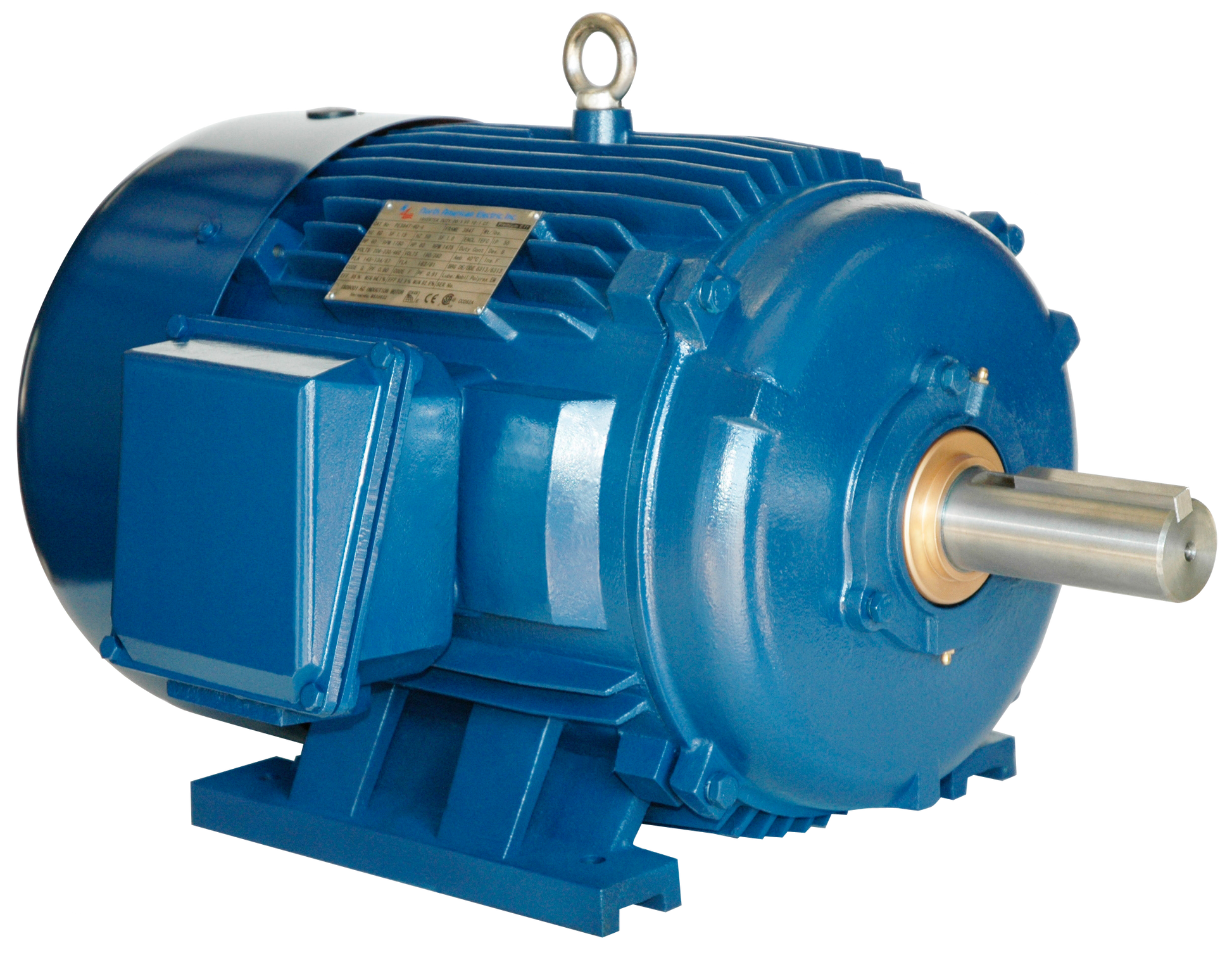

North American Electric PE449T-150-8C, 150 HP, 900 RPM, 449T Frame, 460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty

PE449T-150-8C, 150 HP, 900 RPM, 449T Frame, 460V, 3PH, NEMA Design C, 60HZ, 1.15 S.F., TEFC, Crusher Duty, Cast Iron, Prem Eff, Inverter Duty

Engineering Data

HP 150
RPM 900
Mult. Sym. M12
Frame 449T
Volts 460
Enclosure TEFC
F.L. Eff. 247
Notes 1,3,6
"C" Dim. 52.8
F.L. Amps 180

Features

Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
Class I, Div II Groups ABCD, T2B
Suitable for wye-delta start on 213T frame and above
Dual voltage ratings suitable for part wind start on lower voltage
Single voltage ratings suitable for part wind start at 460V are noted
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
Suitable for 575V @ 1.0 Service Factor
Inverter Duty (20:1 variable torque; 10:1 constant torque)
Vacuum Pressure Impregnation for all windings
Sealed bearings thru 215T frame
Greasable bearings 254T frame and above
Mechanical “V” Seal on drive end
Class F insulation system, class B rise at full load
40° C ambient continuous duty
Corrosion resistant paint
