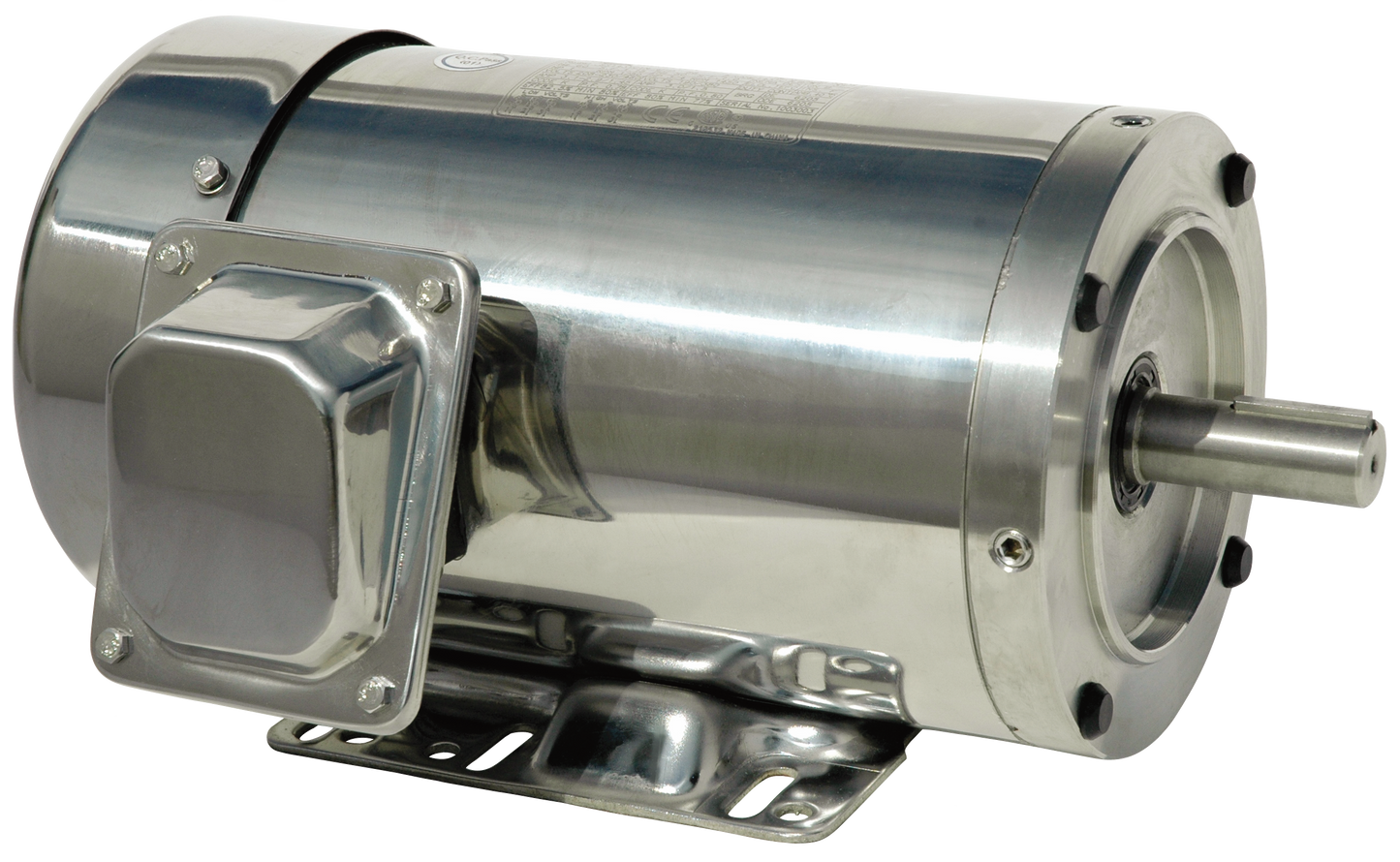

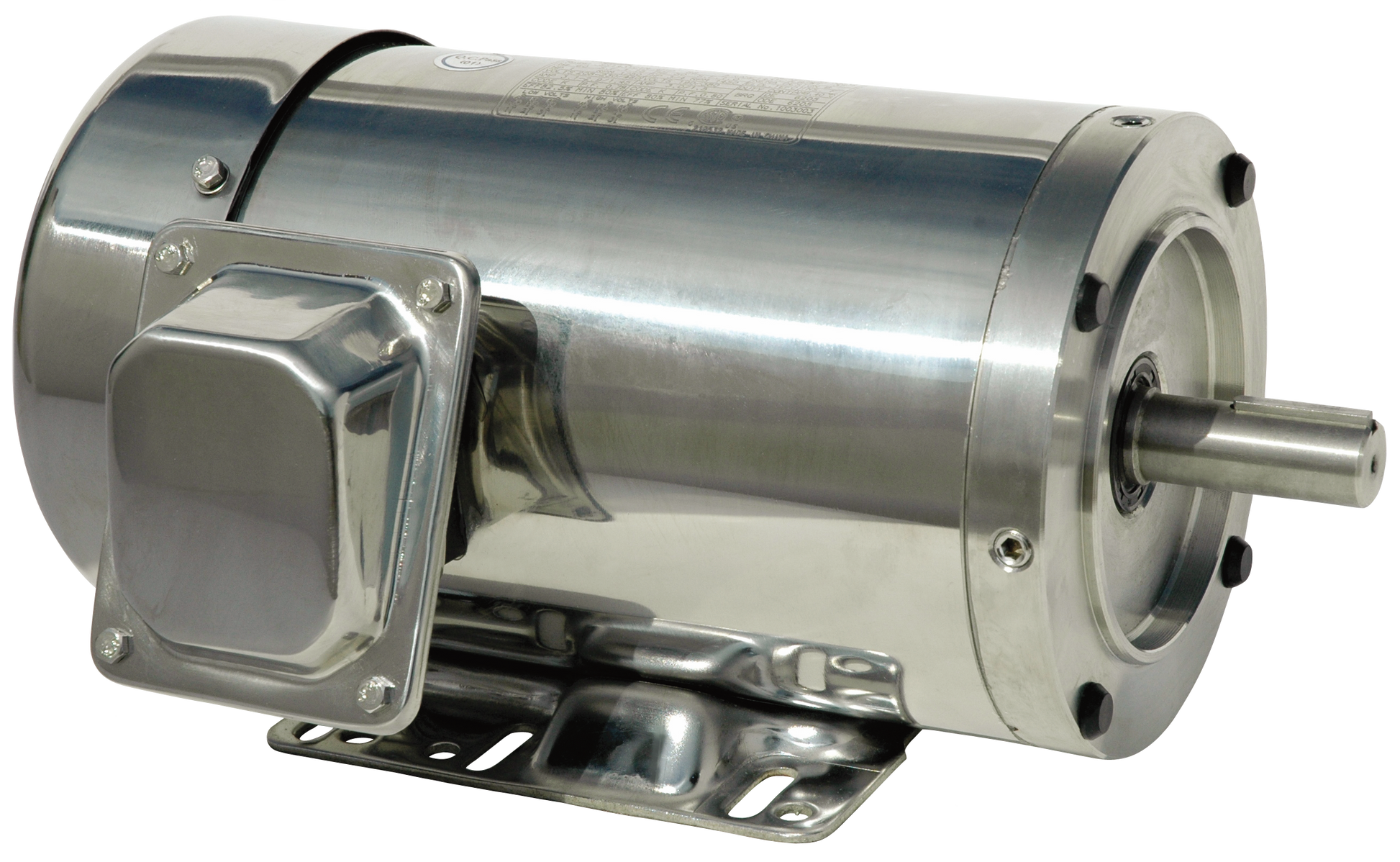

North American Electric PESS184TC5M-2 5 HP, 3600 RPM, 184TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet

PESS184TC5M-2, 5 HP, 3600 RPM, 184TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Feet

Engineering Data

HP 5
RPM 3600
Frame 184TC
Mult. Sym. M18
Volts 208-230/460
Frame Type NESS
Enclosure TEFC
F.L. Eff. 88.5
"C" Dim. 16
Notes 2
F.L. Amps 6.1

Features

High Efficiency Design
All Stainless Steel Construction
IP66 Protections as standard
Inverter Duty (20:1 VT; 10:1 CT)
Vacuum Pressure Impregnation for all windings
Double sealed bearings in both ends
Class F insulation system, class B rise at full load
50 / 60 Hz @ 1.15 Service Factor
NEMA Design B performance
High starting torques
40° C ambient continuous duty
C-Flange as standard
Meets or exceeds NRCan efficiency requirements
ISO 9001 Certification
CSA + C + US Certification
UL Listed

Notes

Meets NEMA MG-1, Table 12-11 Efficiency Requirements as Mandated by the Energy Independence and Security Act.
Meets MEMA MG-1, Table 12-12 Efficiency Requirements as Mandated by the Energy Independence and Security Act.
