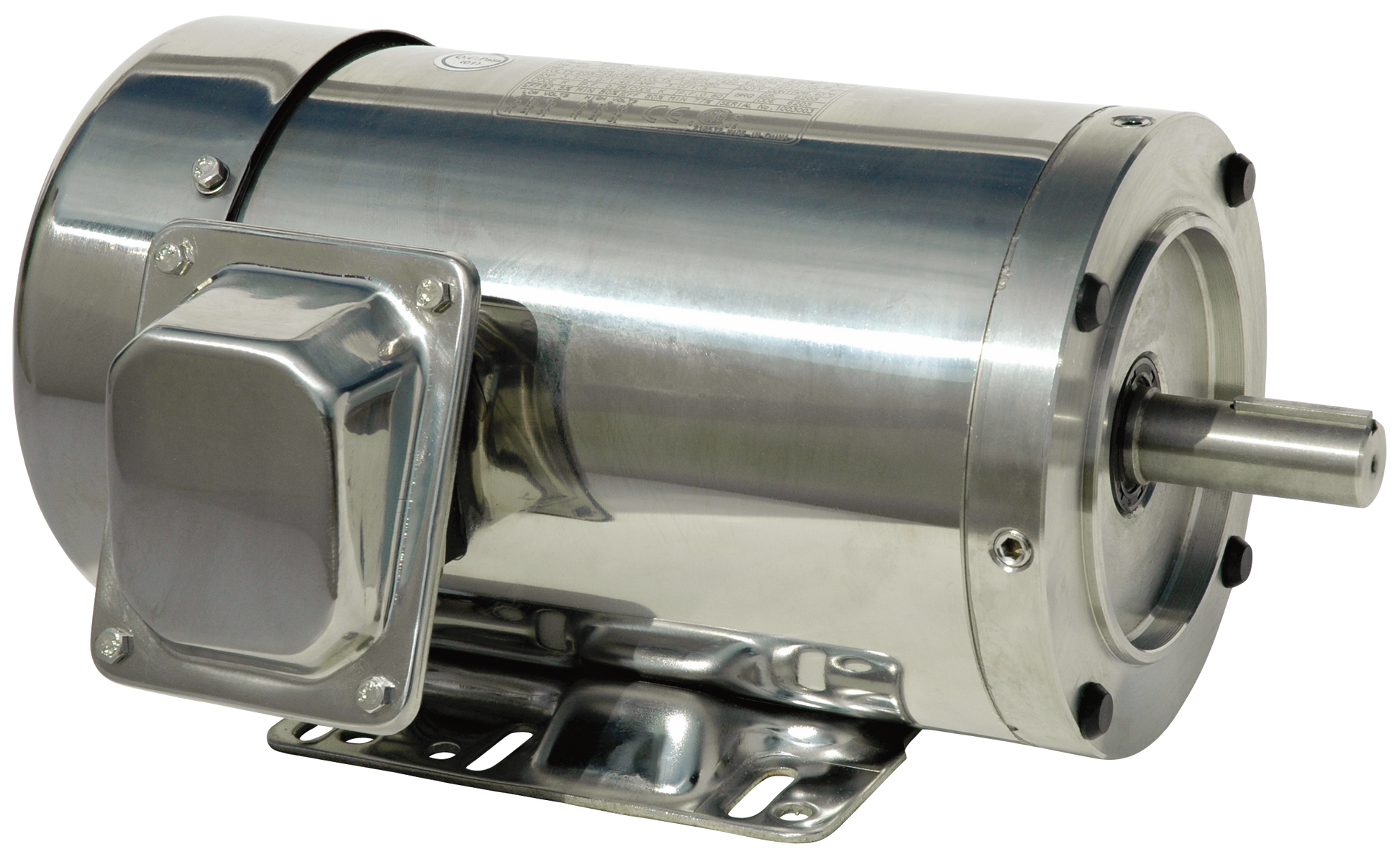

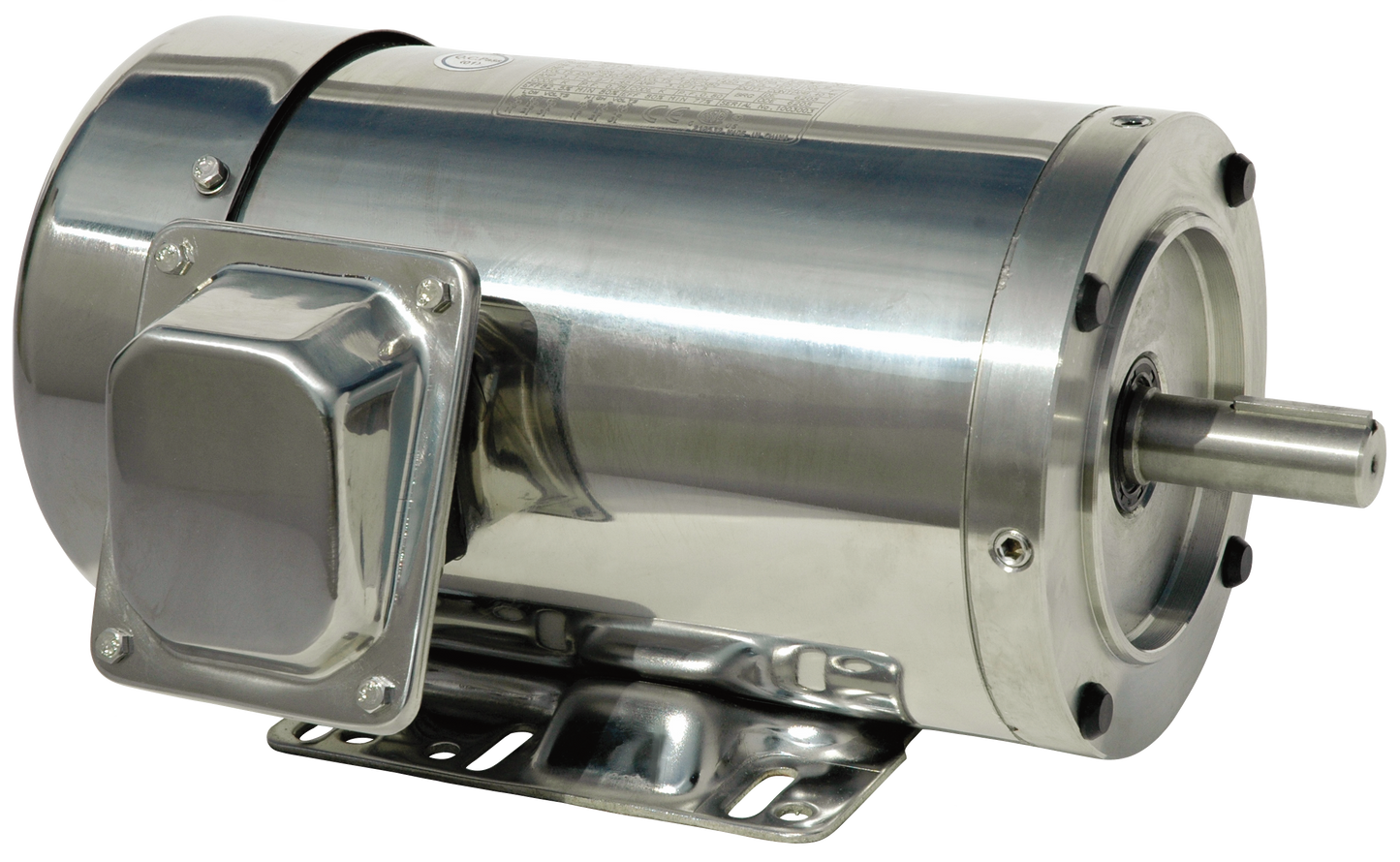

North American Electric PESS254TC15M-4-RB, 15 HP, 1800 RPM, 254TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

PESS254TC15M-4-RB, 15 HP, 1800 RPM, 254TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

Engineering Data

HP 15
RPM 1800
Frame 254TC
Mult. Sym. M18
Volts 208-230/460
Frame Type NESS
Enclosure TEFC
F.L. Eff. 92.4
"C" Dim. 23.4
Notes 2
F.L. Amps 18.5

Features :

High Efficiency Design
All Stainless Steel Construction
IP66 Protections as standard
Inverter Duty (20:1 VT; 10:1 CT)
Vacuum Pressure Impregnation for all windings
Double sealed bearings in both ends
Class F insulation system, class B rise at full load
50 / 60 Hz @ 1.15 Service Factor
NEMA Design B performance
High starting torques
40° C ambient continuous duty
C-Flange as standard
Meets or exceeds NRCan efficiency requirements
ISO 9001 Certification
CSA + C + US Certification
UL Listed
Notes

Meets NEMA MG-1, Table 12-11 Efficiency Requirements as Mandated by the Energy Independence and Security Act.
Meets MEMA MG-1, Table 12-12 Efficiency Requirements as Mandated by the Energy Independence and Security Act.
