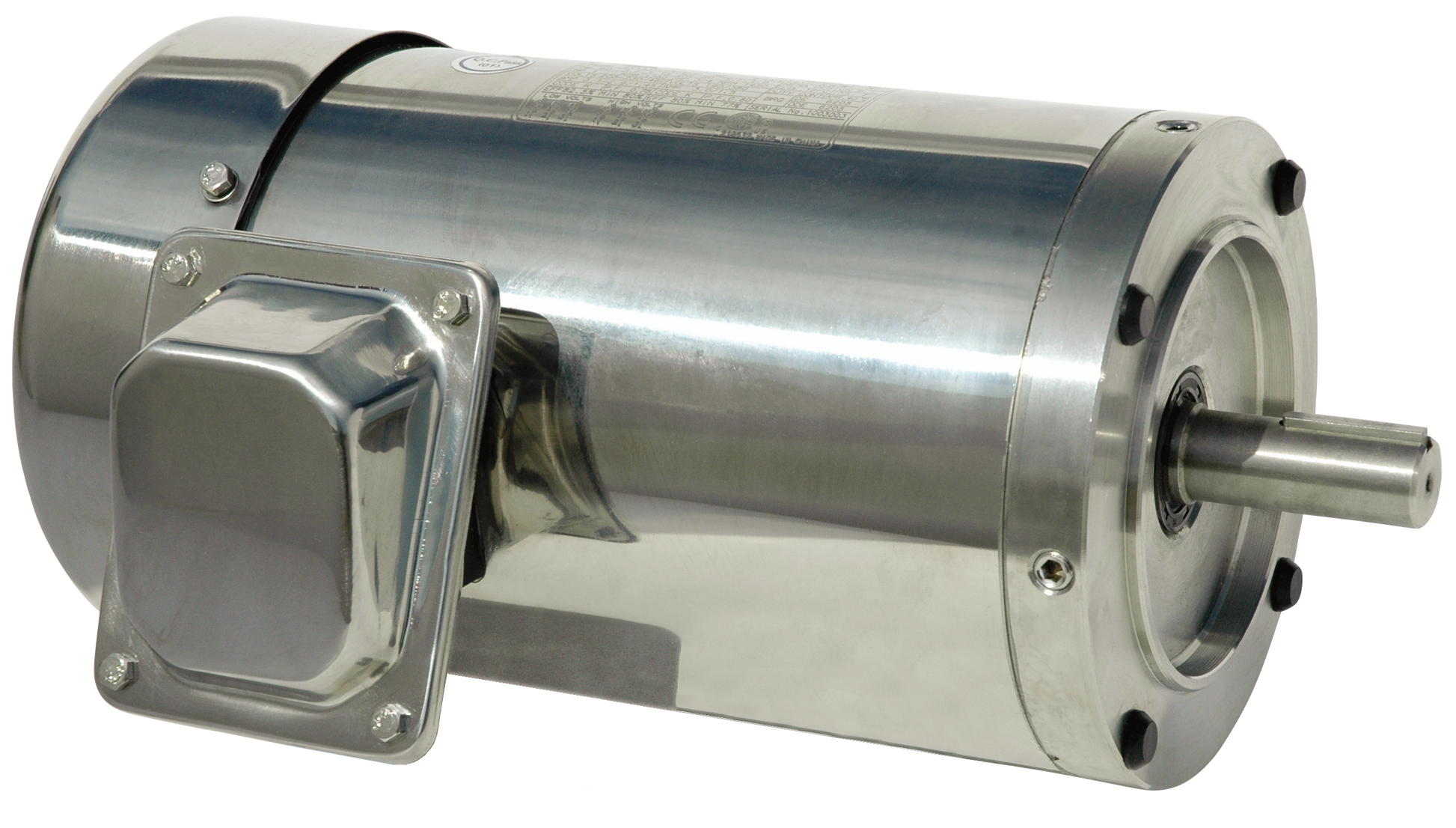

North American Electric PESS56C1M-2-RB 1 HP, 3600 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

PESS56C1M-2-RB, 1 HP, 3600 RPM, 56C Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., IP66 Encl, Washdown Duty, Stainless Steel, Prem Eff, Inverter Duty, C-Flange with Round Body

This product has superseded SS56C1M-2-RB

Horse Power: 1
Phase: Three
Full Load RPM: 3470
Enclosure: TEFC
NEMA DESIGN B

Maximum 5% Slip
High To Medium Starting Current
Normal Locked Rotor Torque
Normal Breakdown Torque
Suited For A Broad Variety Of Applications - Like Fans And Pumps

Engineering Data

HORSE POWER: 1
FULL LOAD RPM: 1780
ENCLOSURE: TEFC
FRAME: 364
FULL LOAD AMPS AT RATED VOLTAGE: 70
FREQUENCY HZ: 60
VOLTAGE: 208-230/460
OVERALL LENGTH INCH: 26.62
OVERALL LENGTH MM: 676.148
FULL LOAD EFFICIENCY PERCENTAGE: 95
SERVICE FACTOR: 1.15
INSULATION CLASS: F
NEMA DESIGN: B
NEMA CODE: G
LOCKED ROTOR AMPS AT RATED VOLTAGE: 435
FULL LOAD POWER FACTOR RATIO: 0.88
FULL-LOAD TORQUE: 177.6
LOCKED-ROTOR TORQUE: 190
BREAKDOWN TORQUE: 270
DRIVE END BOTTOM BEARING: 6313/C3
OPPOSITE DRIVE END UPPER BEARING: 6313/C3
WEIGHT LBS: 860
RPM: 1800
OVERALL HEIGHT INCH: 18.1
OVERALL HEIGHT MM: 459.74
DRIVE END UPPER BEARING: 6313/C3
OPPOSITE DRIVE END BOTTOM BEARING: 6313/C3
MATERIAL: Cast Iron
