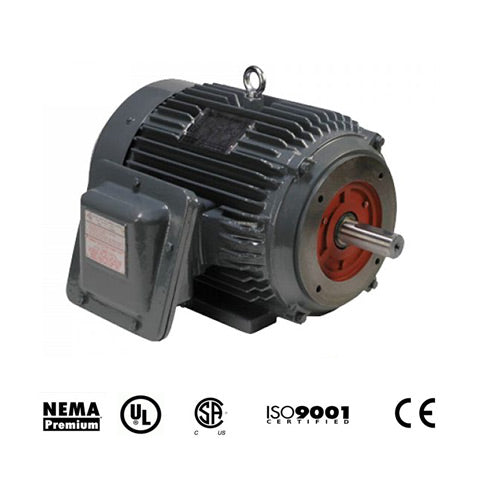

North American Electric PEXP286TC-20-6, 20 HP, 1200 RPM, 286TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated, C-Flange with Feet

PEXP286TC-20-6, 20 HP, 1200 RPM, 286TC Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated, C-Flange with Feet

PRODUCT DETAILS

Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
Class I, Div 1, Groups C & D and Class II, Div 2, Groups F & G * Regreasable open bearings 254T frame and above
Operating Temperature Code: TC3 * Class F insulation system, class B rise at full load
Totally Enclosed Explosion Proof (TEXP) Enclosure * Corrosion resistant epoxy paint
UL Listed * Stainless steel nameplate and zinc plated hardware
CSA + C + US Certification * F1/F2 reversible
ISO 9001 Certification * Feet are dual drilled for mounting flexibility
140T – 180T = 9 Lead WYE 210T – 405T = 9 Lead Delta * NEMA Design B performance
440T and up = 9 Lead WYE * Cast iron frame construction including the conduit box
Dual voltage ratings suitable for part wind start on lower voltage * Severe Duty conversion kit available
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz * C-Flange field conversion kits available
Vacuum Pressure Impregnation for all windings * Lifting provisions on 143T frame and above
Sealed bearings thru 215T frame * IP55 Protection
Regreasable open bearings 254T frame and above
Class F insulation system, class B rise at full load
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled for mounting flexibility
NEMA Design B performance
Cast iron frame construction including the conduit box
Severe Duty conversion kit available
C-Flange field conversion kits available
Lifting provisions on 143T frame and above
IP55 Protection

HP 20
RPM 1200
Frame 286TC
Mult. Sym. M5
Volts 208-230/460
Frame Type NEXP
Enclosure TEXP
F.L. Eff. 91.7
"C" Dim. 28.1"
F.L. Amps 23.5
