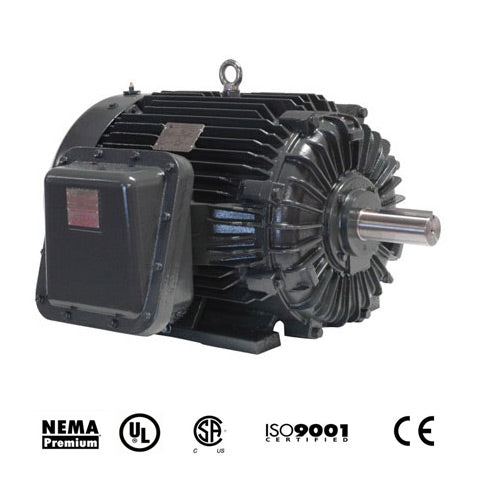

North American Electric PEXP405TS-100-2, 100 HP, 3600 RPM, 405TS Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated

PEXP405TS-100-2, 100 HP, 3600 RPM, 405TS Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated

PRODUCT DETAILS

HP 75
RPM 3600
Frame 405TS
Mult. Sym. M5
Volts 208-230/460
Frame Type NEXP
Enclosure TEXP
F.L. Eff. 94.1
"C" Dim. 35.6"
F.L. Amps 108.8

Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
Class I, Div 1, Groups C & D and Class II, Div 2, Groups F & G
Operating Temperature Code: TC3
Totally Enclosed Explosion Proof (TEXP) Enclosure
UL Listed
CSA + C + US Certification
ISO 9001 Certification
140T – 180T = 9 Lead WYE 210T – 405T = 9 Lead Delta
440T and up = 9 Lead WYE
Dual voltage ratings suitable for part wind start on lower voltage
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
Vacuum Pressure Impregnation for all windings
Sealed bearings thru 215T frame
Regreasable open bearings 254T frame and above
Class F insulation system, class B rise at full load
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled for mounting flexibility
NEMA Design B performance
Cast iron frame construction including the conduit box
Severe Duty conversion kit available
C-Flange field conversion kits available
Lifting provisions on 143T frame and above
IP55 Protection
