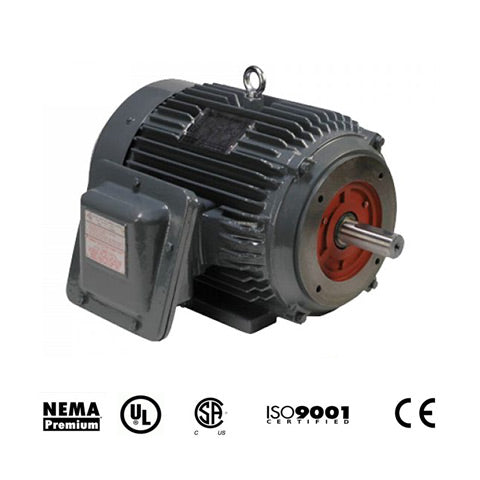

North American Electric PEXP445TSC-150-2, 150 HP, 3600 RPM, 445TSC Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated, C-Flange with Feet

PEXP445TSC-150-2, 150 HP, 3600 RPM, 445TSC Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated, C-Flange with Feet

PRODUCT DETAILS

HP 150
RPM 3600
Frame 445TSC
Mult. Sym. M5
Volts 460V
Frame Type NEXP
Enclosure TEXP
F.L. Eff. 95
"C" Dim. 40.6
F.L. Amps 160

Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
Class I, Div 1, Groups C & D and Class II, Div 2, Groups F & G * Regreasable open bearings 254T frame and above
Operating Temperature Code: TC3 * Class F insulation system, class B rise at full load
Totally Enclosed Explosion Proof (TEXP) Enclosure * Corrosion resistant epoxy paint
UL Listed * Stainless steel nameplate and zinc plated hardware
CSA + C + US Certification * F1/F2 reversible
ISO 9001 Certification * Feet are dual drilled for mounting flexibility
140T – 180T = 9 Lead WYE 210T – 405T = 9 Lead Delta * NEMA Design B performance
440T and up = 9 Lead WYE * Cast iron frame construction including the conduit box
Dual voltage ratings suitable for part wind start on lower voltage * Severe Duty conversion kit available
1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz * C-Flange field conversion kits available
Vacuum Pressure Impregnation for all windings * Lifting provisions on 143T frame and above
Sealed bearings thru 215T frame * IP55 Protection
Regreasable open bearings 254T frame and above
Class F insulation system, class B rise at full load
Corrosion resistant epoxy paint
Stainless steel nameplate and zinc plated hardware
F1/F2 reversible
Feet are dual drilled for mounting flexibility
NEMA Design B performance
Cast iron frame construction including the conduit box
Severe Duty conversion kit available
C-Flange field conversion kits available
Lifting provisions on 143T frame and above
IP55 Protection
